Compressor overload protection, high and low voltage protection device, and phase loss and reverse protection device

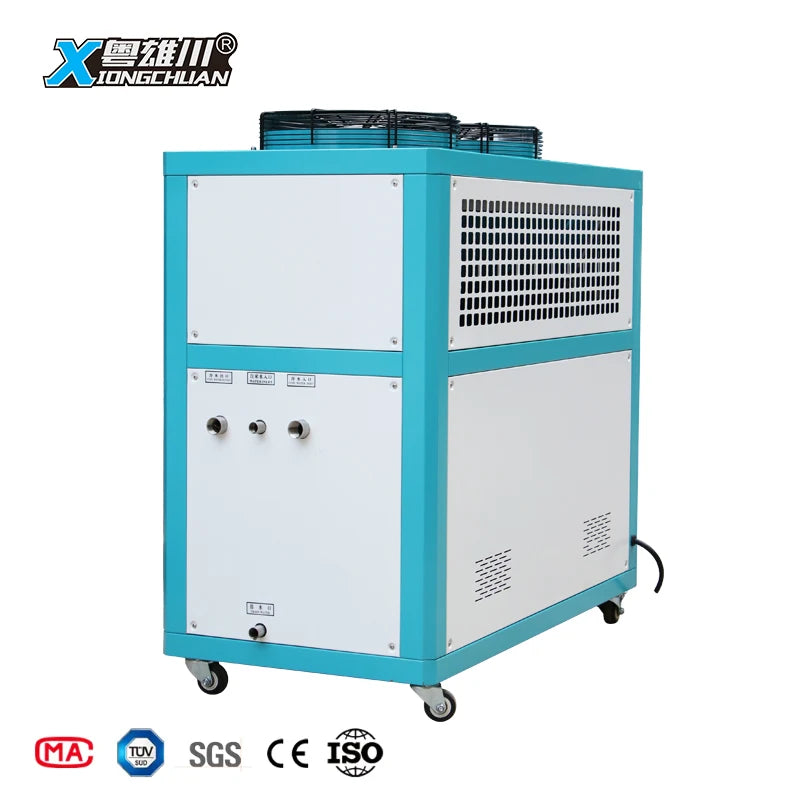

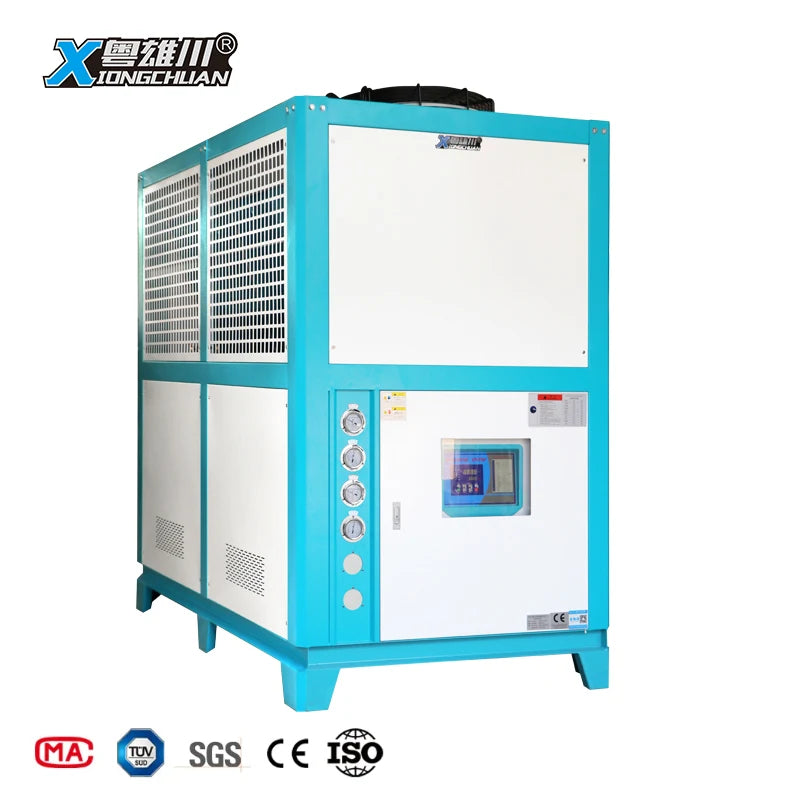

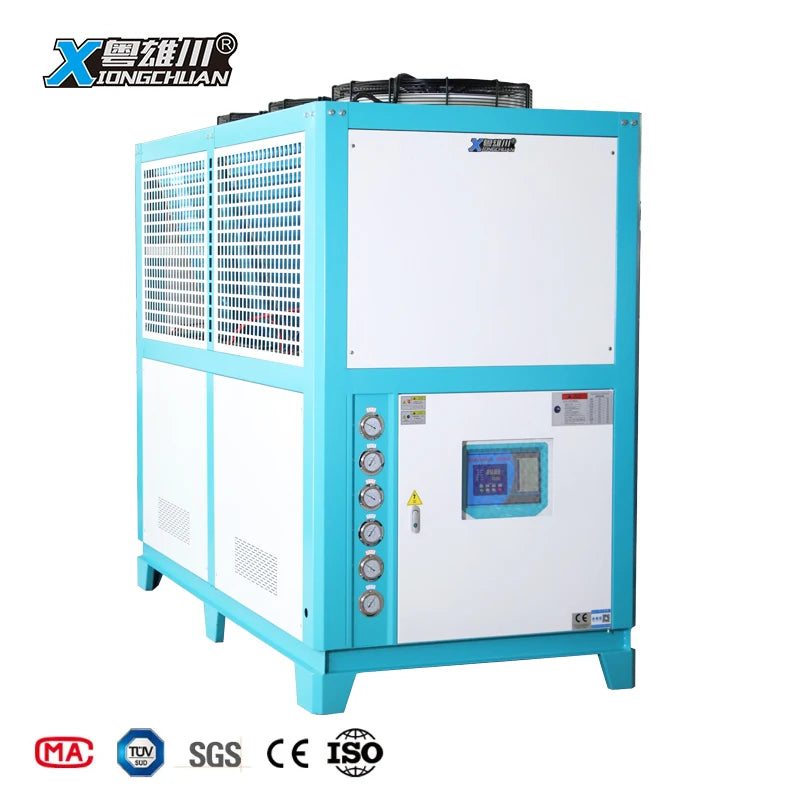

Xiongchuan 14 Ton Water Cooling Low Temperature Industrial Air 20HP Automatic Chiller 6 Protections 50805Kcal/h Cooling Capacity
Regular price
$40,320.00
Sale price
$40,320.00
Regular price
$0.00
Unit price
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
🔒 Secure Checkout
💰 Money Back Guarantee
↩️ Free Returns
🚚 Fast Shipping
Xiongchuan 14 Ton Water Cooling Low Temperature Industrial Air 20HP Automatic Chiller 6 Protections 50805Kcal/h Cooling Capacity
Product reviews
Product description
Shipping & Return
SPECIFICATIONS
Compressor power: 19KW/20HP
Cooling capacity: 50805Kcal/h
Cooling water flow: 10.16m3/h
Safety setting: 6 protections
Water Tank Capacity: 280L
Weight (KG): 590
brand name: xiongchuan
dimension(l*w*h): 1260*640*1250mm
key selling points: Automatic
machinery test report: Provided
model number: 20HP
place of origin: Guangdong, China
power: 18.95KW
video outgoing-inspection: Provided
voltage: 220 V,415 V,380 V,240 V,230 V,110 V
warranty: 1 Year
working temperature range: 5℃~35℃
Products Description

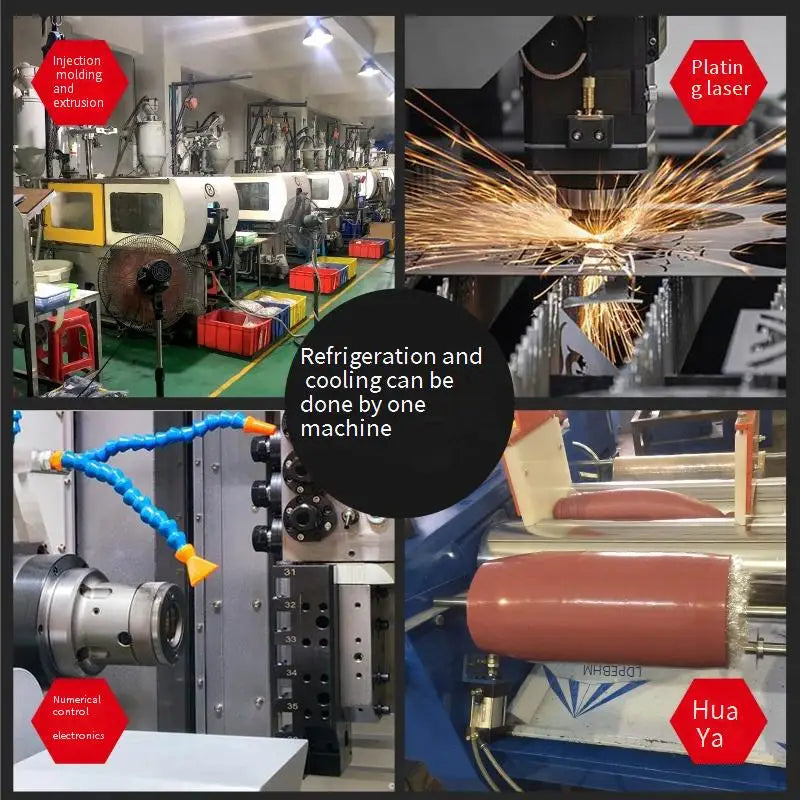

Suitable for various industries
Industrial chillers are widely used in plastics, electronics manufacturing, electroplating, pharmaceutical and chemical, ultrasonic cooling, printing and other industrial productions. It can precisely control the temperature required for modern industrial manufacturing and largely improve efficiency and product quality. It is the best choice for modern industries with simple operation, reasonable design and superior quality and over one hundred different models.
Industrial water chiller is to provide a cooling process in plastic molding, to improve quality of molded products andshortenperiod of injection molding cycles. Hence maximizes productivity of plastic molding manufacturing.

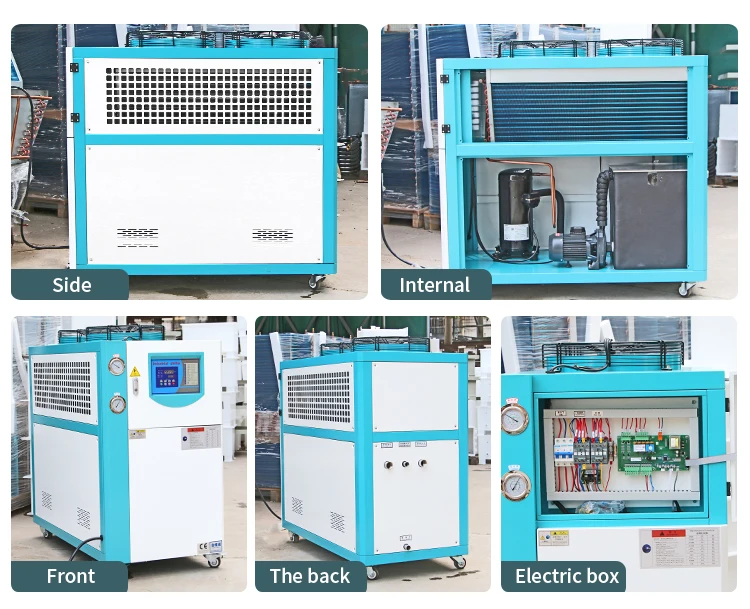

Comprehensive display
Product parameters
Air Cooled Chiller |
||||||||||||||||||
Model |
XC-01 |
XC-02 |
XC-03 |
XC-05 |
XC-08 |
XC-10 |
XC-15 |
XC-20 |
||||||||||
Refrigeration capacity
|
KW/hr |
1.67 |
5.67 |
8.39 |
13.95 |
21.8 |
28.01 |
44.15 |
59.08 |
|||||||||
Kcal |
1438 |
4872 |
7216 |
11990 |
18748 |
24089 |
37965 |
50805 |
||||||||||
Temperature range |
℃ |
5-50℃ Room temperature (Below 0℃ can be customized) |
||||||||||||||||
Power supply |
1N-220V 50HZ |
3N-380V 50HZ/Non standard voltage customizable |
5N-380V 50HZ/Non standard voltage customizable |
|||||||||||||||
Total power |
KW |
1.10 |
2.005 |
2.89 |
4.58 |
7.25 |
9.09 |
13.85 |
18.95 |
|||||||||
Throttling control method |
Capillary |
Expansion valve |
||||||||||||||||
Types |
Fully enclosed vortex or piston type |
|||||||||||||||||
Power /KW |
0.69 |
1.50 |
2.25 |
3.75 |
6.00 |
7.50 |
11.25 |
15 |
||||||||||
Refrigerant |
R22、R407C、R404A、R134A、R410A |
|||||||||||||||||
Airvolume
(M³/h)
|
1000 |
2000 |
3000 |
5000 |
8000 |
10000 |
15000 |
20000 |
||||||||||
Power/Kw |
0.14 |
0.14 |
0.28 |
0.36 |
0.9 |
0.9 |
1.20 |
1.6 |
||||||||||
Evaporator |
Amount of water (M³/h) |
0.51 |
0.97 |
1.44 |
2.40 |
3.75 |
4.82 |
7.60 |
10.16 |
|||||||||
Water tank capacity (L) |
L |
30 |
33 |
46 |
56 |
125 |
125 |
195 |
280 |
|||||||||
Import and export caliber (MM) |
MM |
DN15 |
DN20 |
DN20 |
DN20 |
DN40 |
DN40 |
DN50 |
DN65 |
|||||||||
Circulating pump |
Power /KW |
0.37 |
0.37 |
0.37 |
0.37 |
0.75 |
0.75 |
1.50 |
2.25 |
|||||||||
Flow |
L/MIN |
33 |
90 |
90 |
90 |
170 |
170 |
340 |
500 |
|||||||||
Lift |
M |
24 |
18 |
18 |
18 |
16 |
16 |
17 |
17 |
|||||||||
Machine Dimensions
|
Long/MM |
400 |
750 |
1150 |
1150 |
1440 |
1530 |
1750 |
1900 |
|||||||||
Wide/MM |
410 |
520 |
600 |
600 |
700 |
750 |
850 |
1000 |
||||||||||
Height/MM |
870 |
970 |
1180 |
1450 |
1450 |
1500 |
1600 |
1870 |
||||||||||

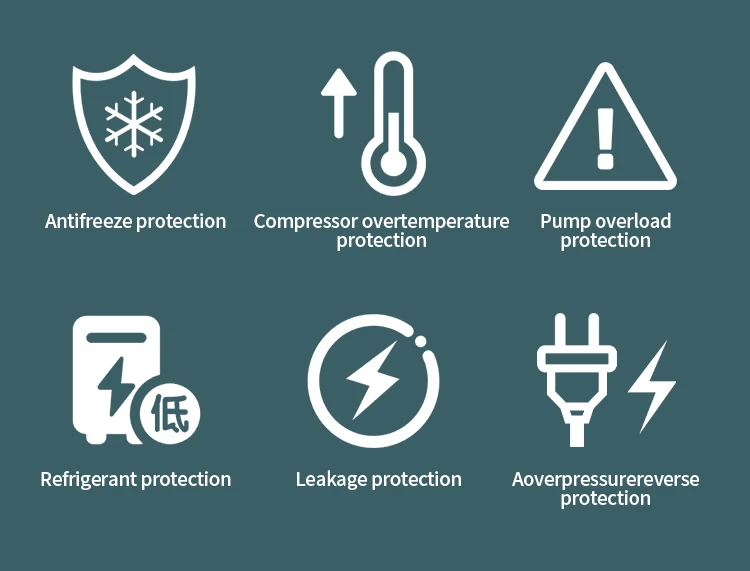

Protection System
Product details

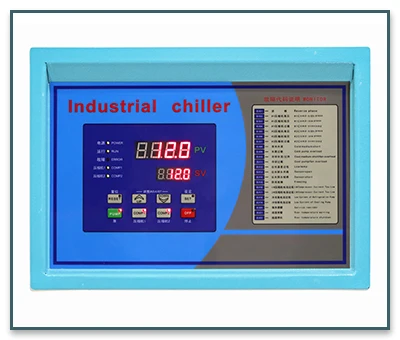

Microcomputer control, easy to operate.The water temperature error can be accurately controlled within ±1℃.

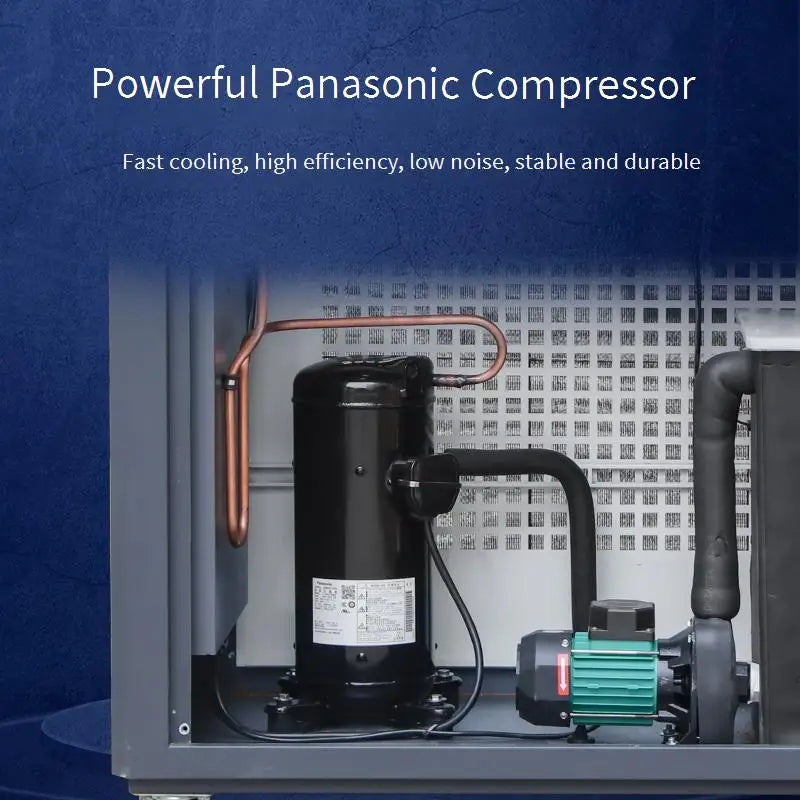

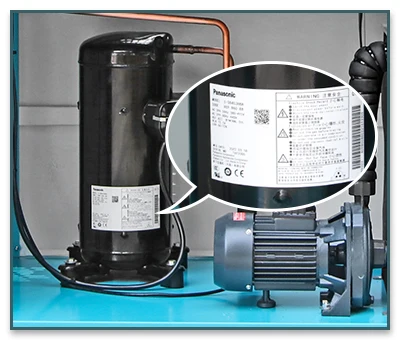

Using panasonic and copeland fully enclosed scrollcompressors,powerful refrigeration,silent and energy saving.

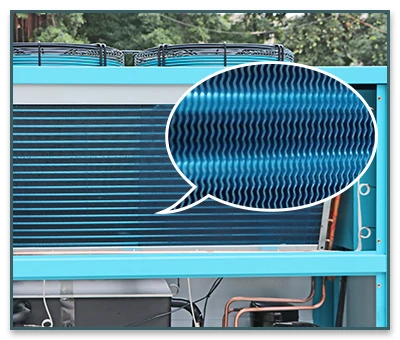

Copper tube sleeve aluminum fin condenser,V-shaped appearance greatly increases the heat dissipation area, with a cooling fan
,enhaces the heat dissipation effect.

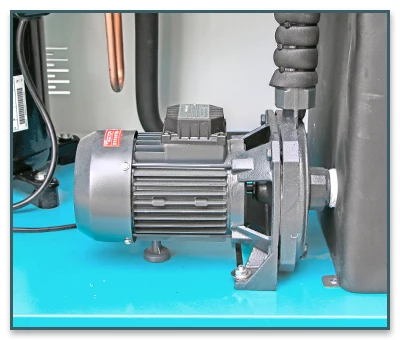

Using two or four-level standard motors,stable operation,low noise,large flow.

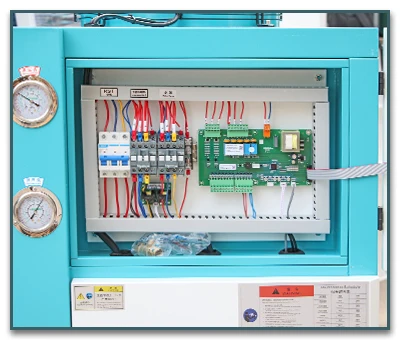

Using Schneider brand electrical appliances,better performance and longer service life.
Device Connection Diagram

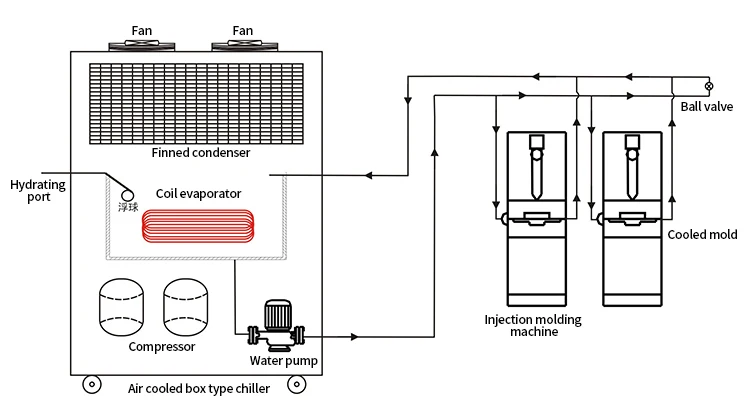

Air-cooled connection

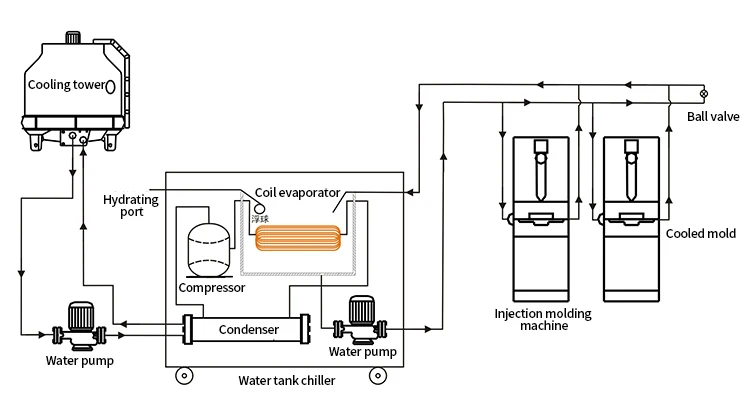

Water-cooled connection
About us

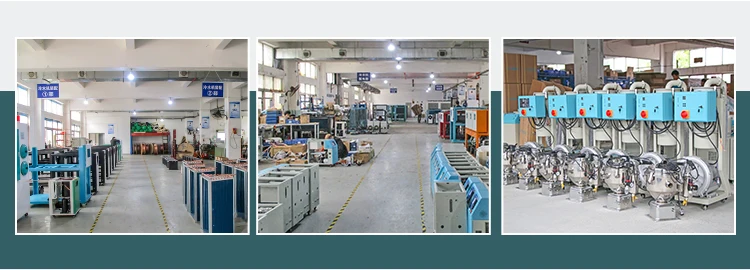

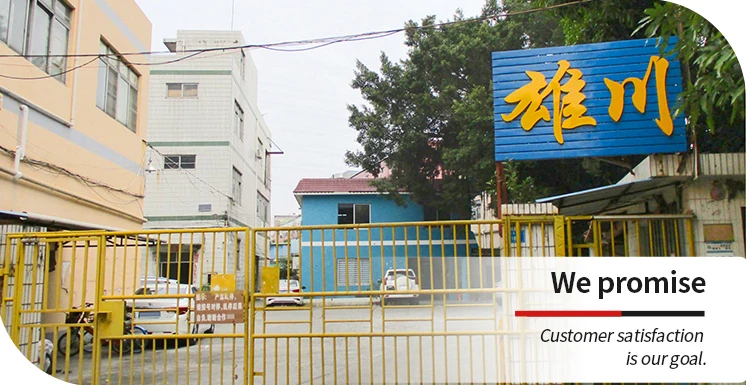

Company Profile
Dongguan Xiongchuan Intelligent Technology Co., Ltd. (referred to as Xiongchuan) is a professional enterprise that develops and produces refrigeration and heating temperature control mechanical equipment, crushing and recycling series, drying and conveying series, mixing and color mixing series, and other equipment. The company was established in 2011. Since its establishment, we have adhered to the principle of taking product quality as the foundation, market demand as the guide, and customer value creation as our responsibility. We are honest, professional, and constantly exploring and innovating, providing a strong guarantee for the continuous optimization of product quality.
Logistics information
FAQ
What is the MOQ?
1 SET Commercial Air Conditioner R22 Modular Air Cooled Water Chiller.
How is the quality of your product?
Our products are produced in strict accordance with national and international standards.We have CE, ISO certification.We rigorously test each product before delivery.
Could you accept customization?
Yes,We accept OEM and ODM.
What is your voltage?
We accept custom voltages from our customers.Such as 400v,208v,380v,220v etc.
How is your price?
We will give a best discount to our customers.
