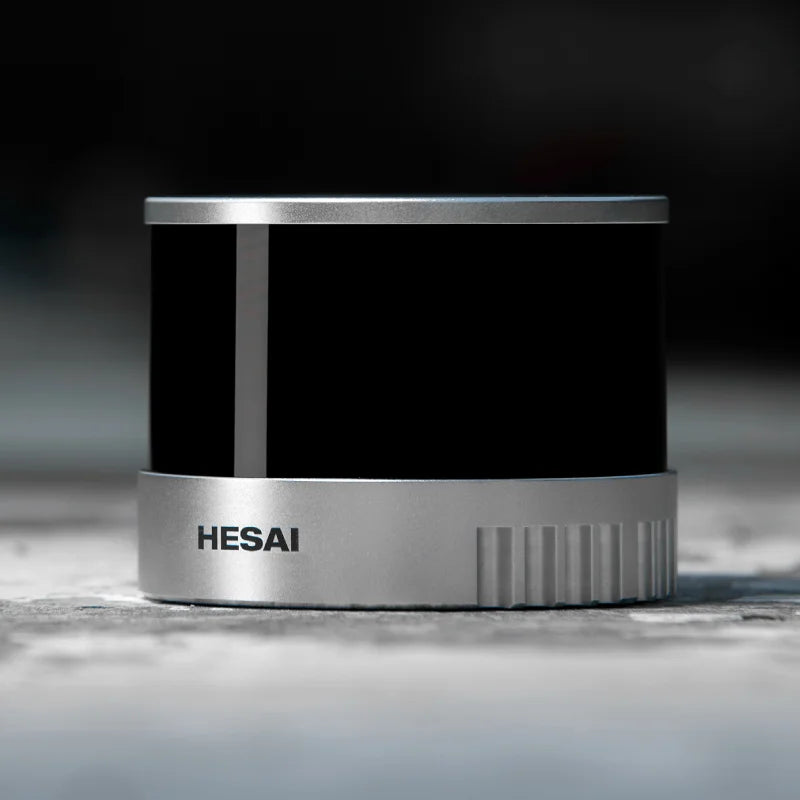

XT32 HESAI XT16 Lidar Sensor 16-Channel / 32-Channel 360° Spinning Mid-Range Lidar Sensor High Precision Minimum Range of Zero

Regular price $25,095.00
Sale price $25,095.00 Regular price $0.00
Unit price
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery:Jun 10 - Jun 14

  • Free Shipping & Returns: On all orders over $75

🔒 Secure Checkout
💰 Money Back Guarantee
↩️ Free Returns
🚚 Fast Shipping

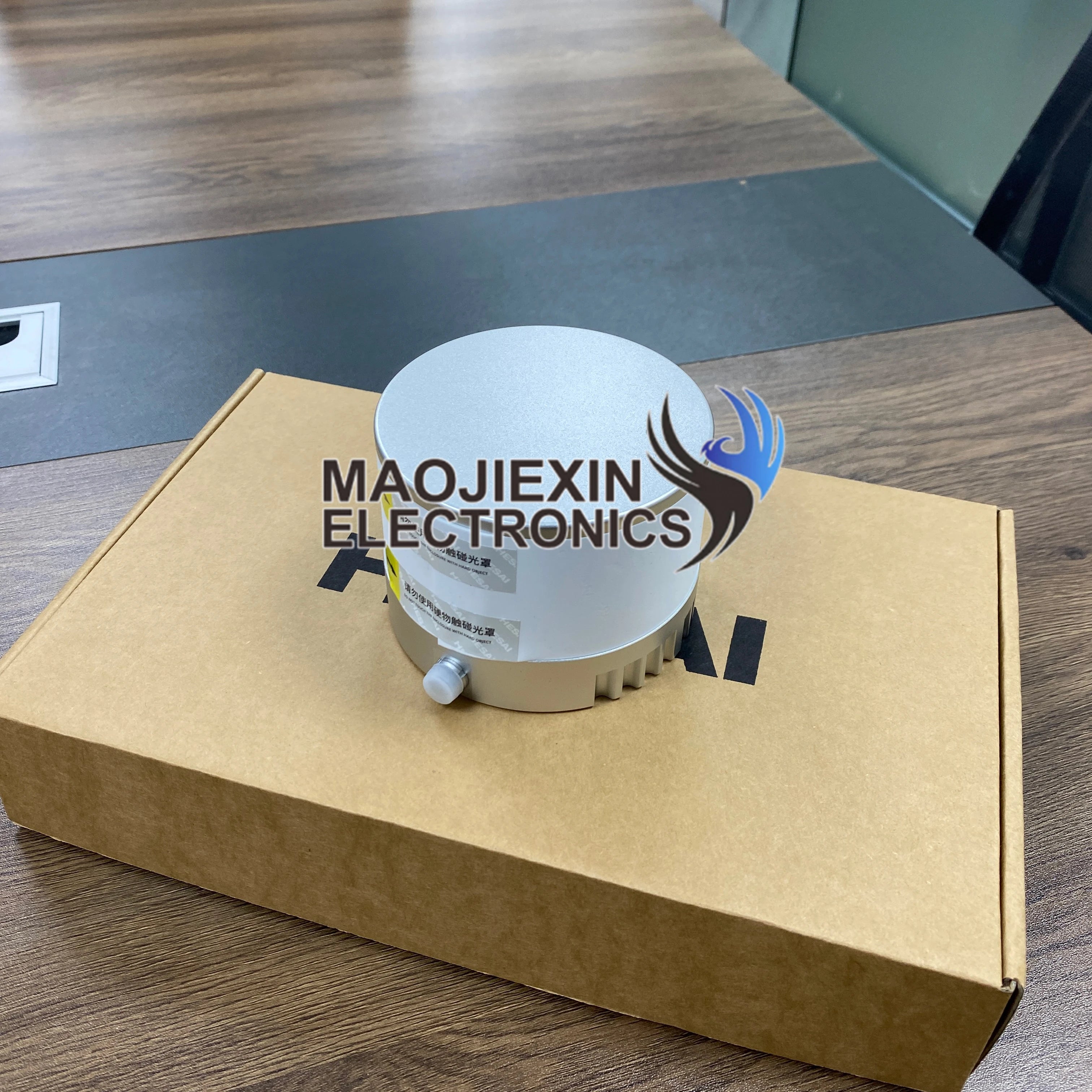

XT32 HESAI XT16  Lidar Sensor 16-Channel / 32-Channel 360° Spinning Mid-Range Lidar Sensor High Precision Minimum Range of Zero

XT32 HESAI XT16 Lidar Sensor 16-Channel / 32-Channel 360° Spinning Mid-Range Lidar Sensor High Precision Minimum Range of Zero

Product reviews
Product description
Shipping & Return

SPECIFICATIONS

Amplifier Type: Standard

Brand: Sensor

Brand Name: Hesai

Condition: 100% Brand

Current - Supply: Standard

Current - Supply (Max): Standard

Description: Lidar sensor

Features: Standard

Key words: sensor

LEAD TIME: 3-5 Days

MOQ: 1PC

Manufacturing Date Code: Newest

Model Number: XT16/XT32

Mounting Type: Standard

Operating Temperature: Standard

Original: Original

Output: Standard

Output Type: Standard

Payment: Paypal\TT\Western Union\Trade Assurance

Place of Origin: Original

Product name: XT16

Quality: 100% Original 100% Brand

Resolution (Bits): Standard

Series: Hesai XT

Shipping BY: DHL\UPS\Fedex\EMS\TNT\Aramex

Theory: Standard

Usage: Robot , automobile,lidar sensor

Voltage - Supply: Standard


About us

We are an original equipment manufacturer that integrates solutions and products. Welcome to discuss cooperation!
Product Description

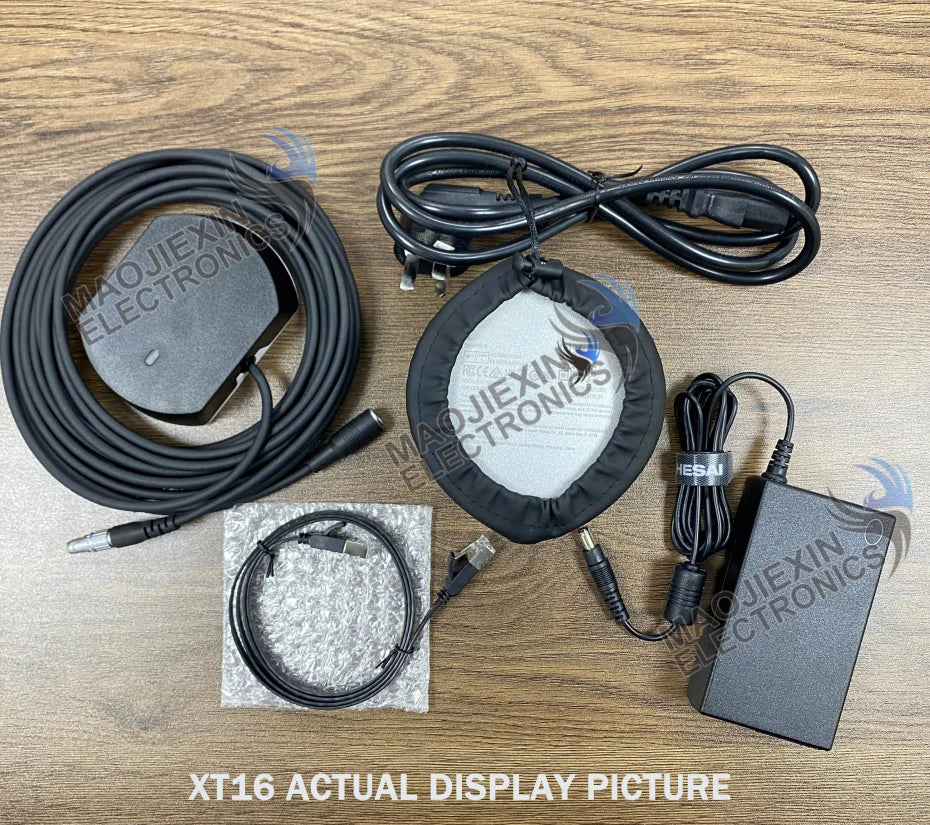

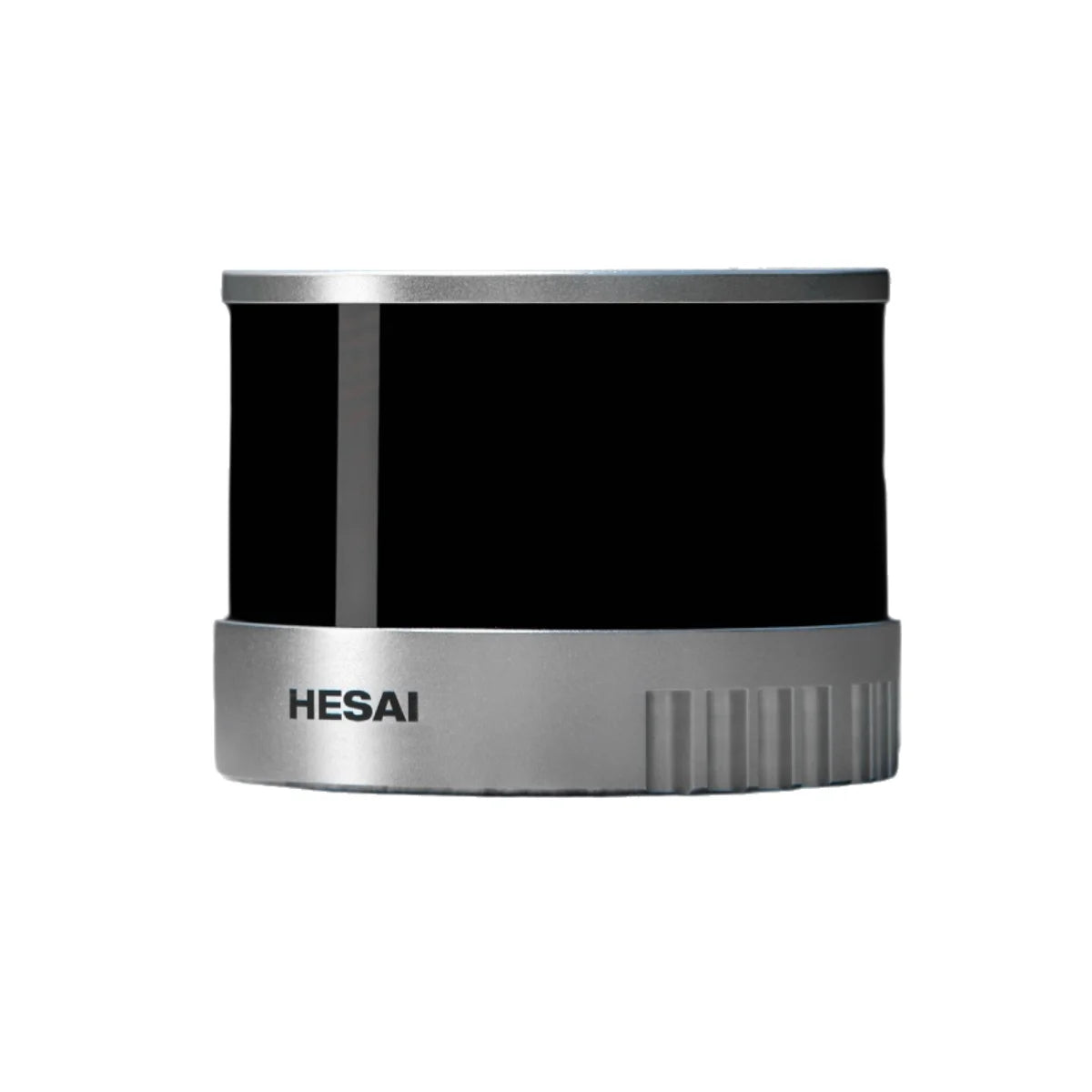

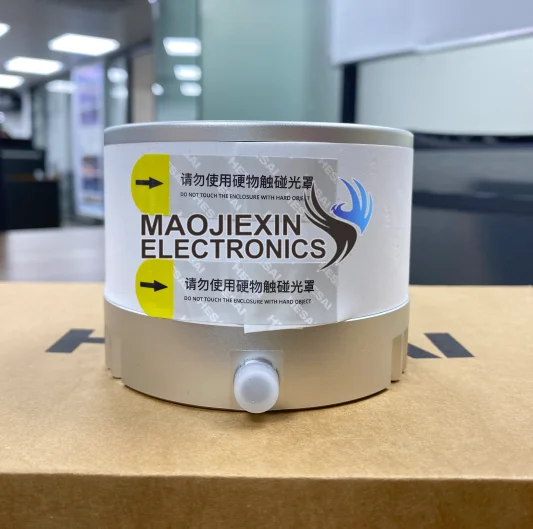

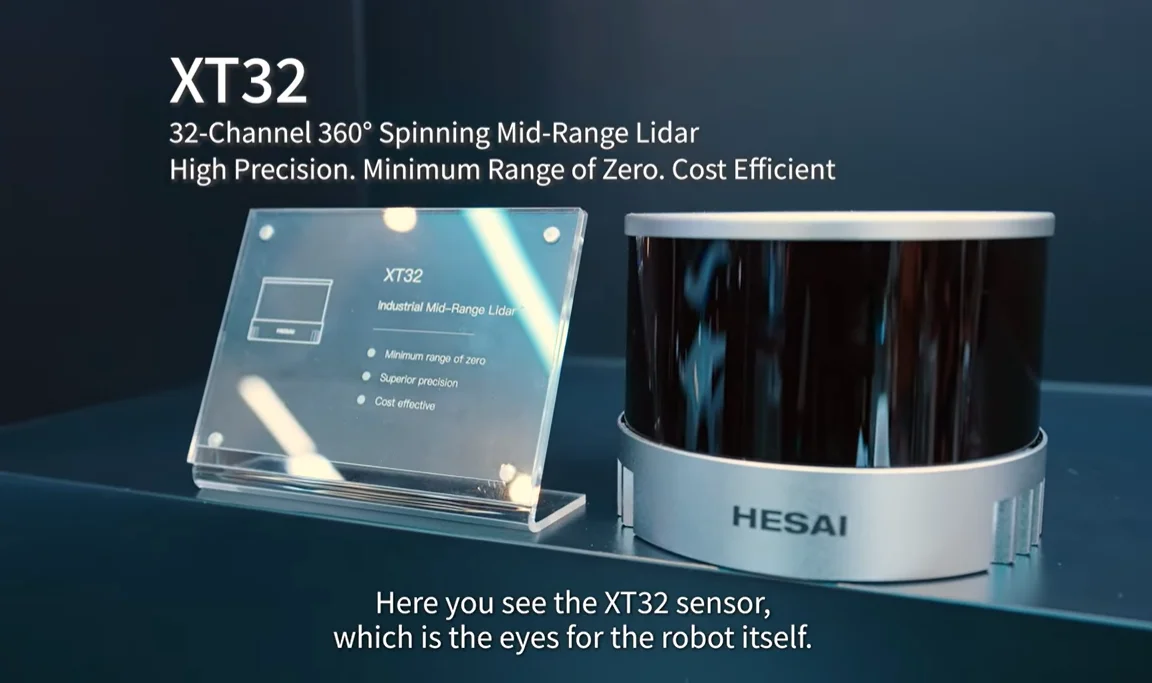

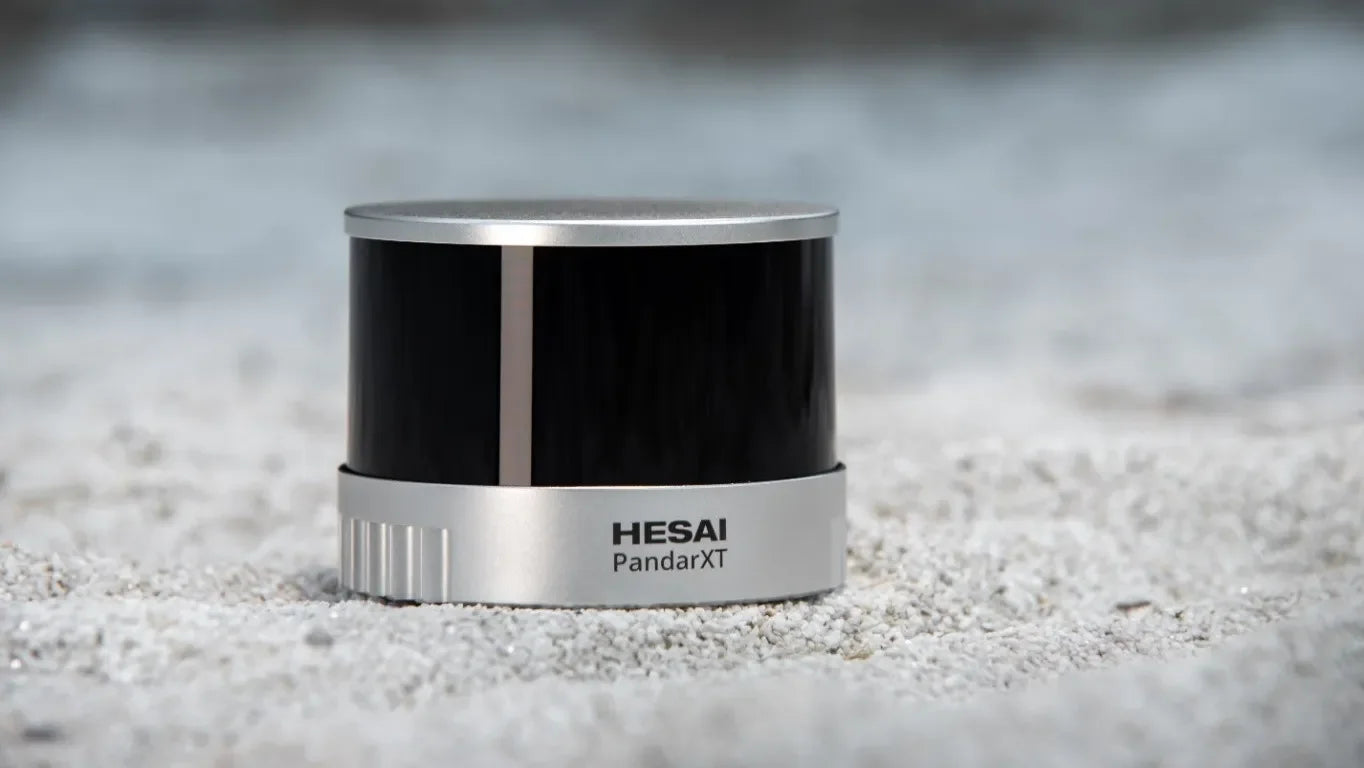

XT32/XT16 Hesai Lidar sensor
Hesai Technology's XT16 and XT32 are high-precision 3D LiDAR sensors built on a next-generation platform featuring a proprietary LiDAR ASIC. The XT16 and XT32 feature 16 and 32 laser transmitter/receiver sensors (Class 1 Eye Safe), respectively, enabling 3D imaging with a 360° horizontal field of view and a 30° vertical field of view for the XT16 and 31° for the XT32 (40.3° for the long-range model).

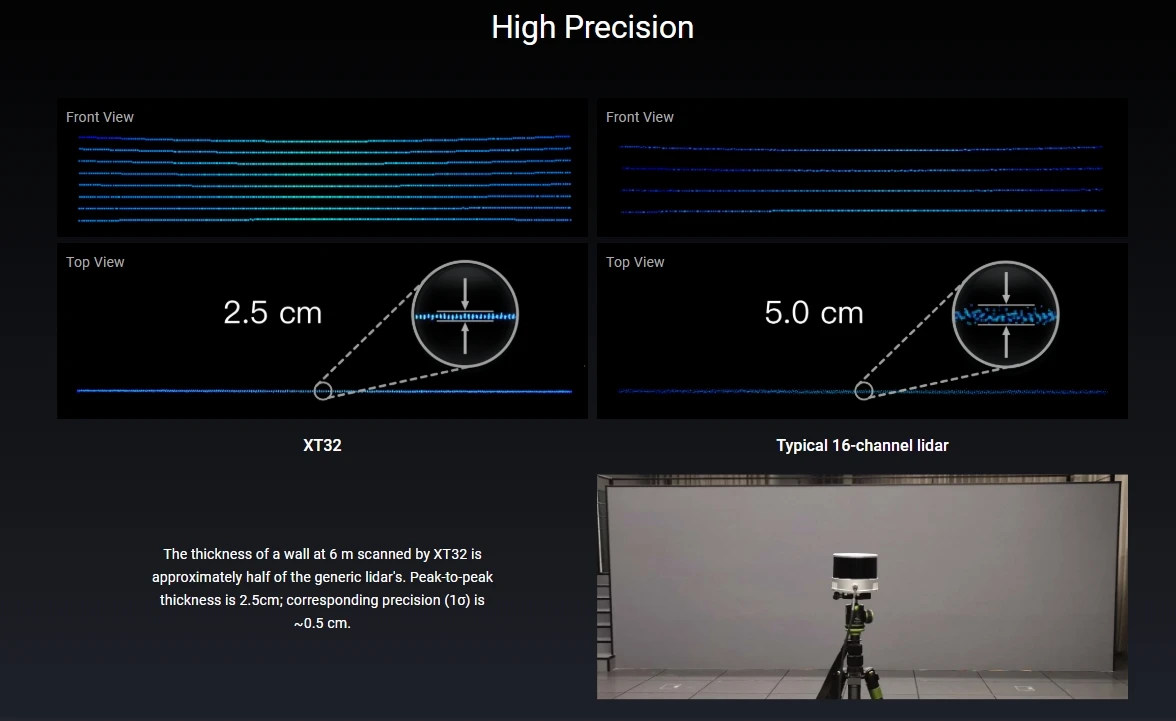

Measurement accuracy is approximately ±2cm, reducing the error of acquired point clouds by more than half compared to other conventional rotating LiDARs.

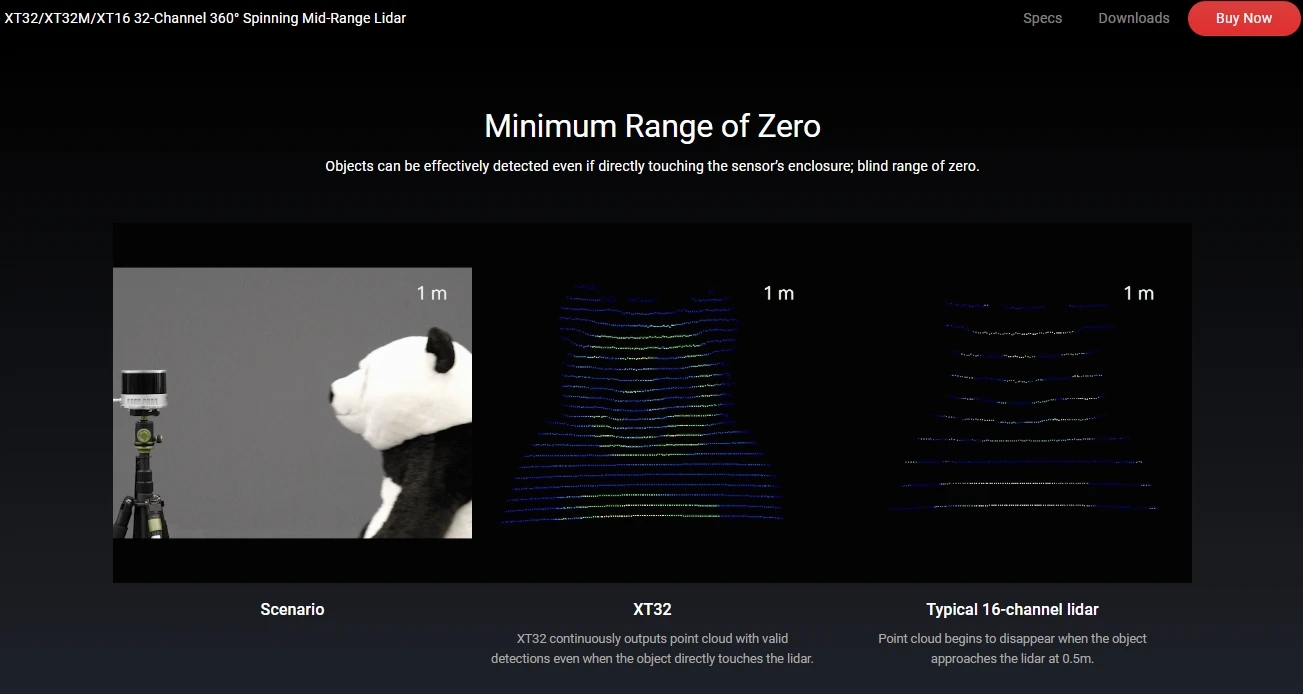

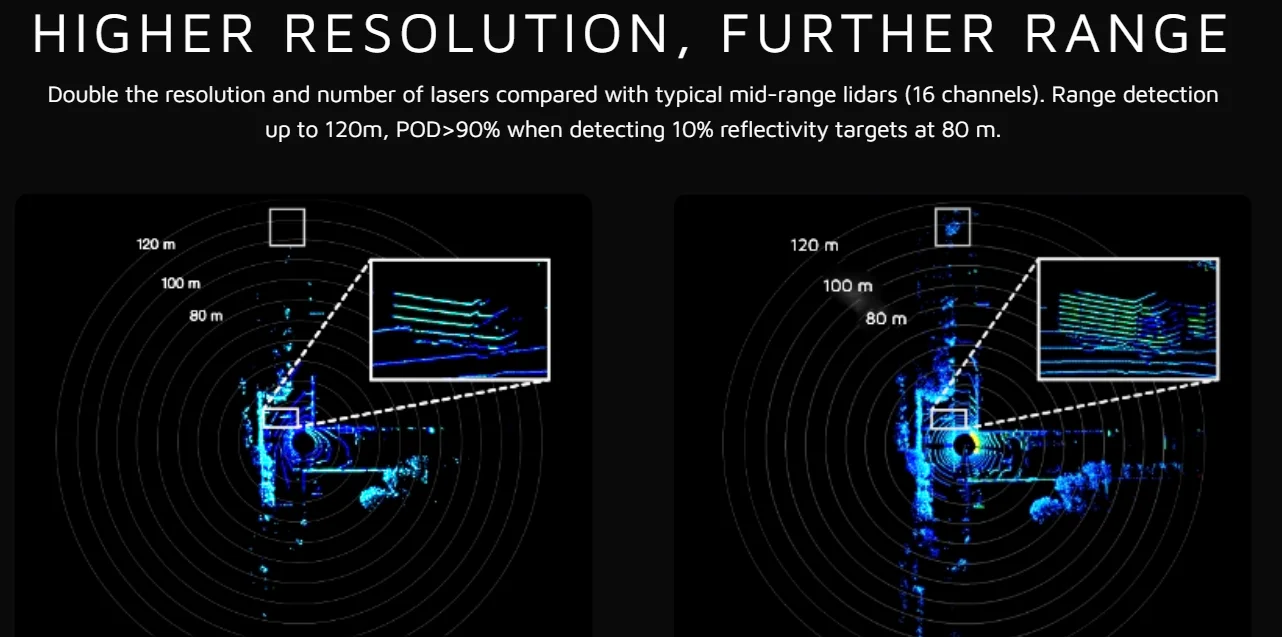

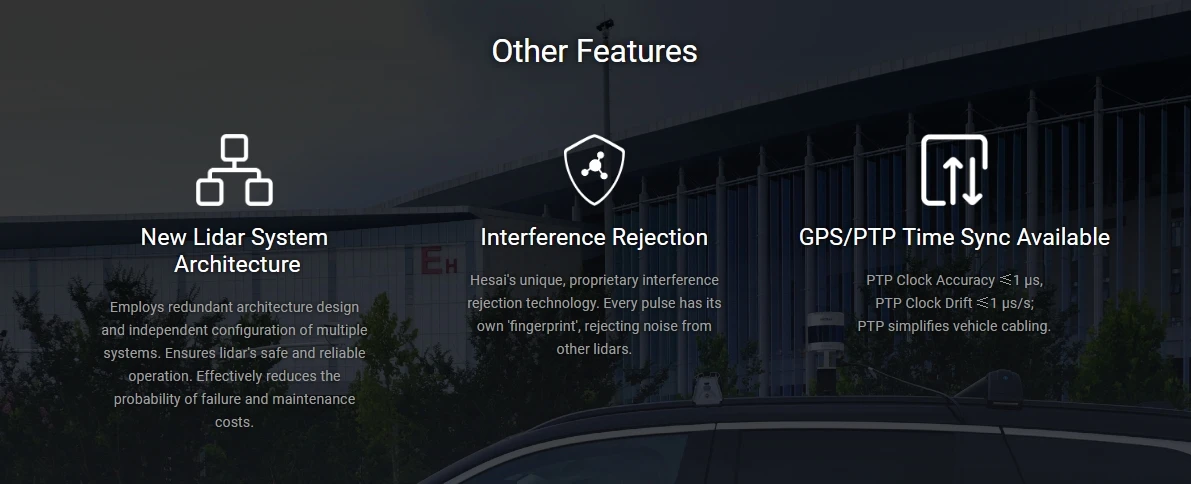

The measurement distance is approximately 120m, and the long-range model supports long-distance measurements up to 250m. Measurements can be made from zero level at close range, enabling detection of obstructions even when the sensor is in contact with the object. The patented interference noise removal function makes the sensors less susceptible to interference from other sensors and ambient light, resulting in clean, noise-free point cloud data.

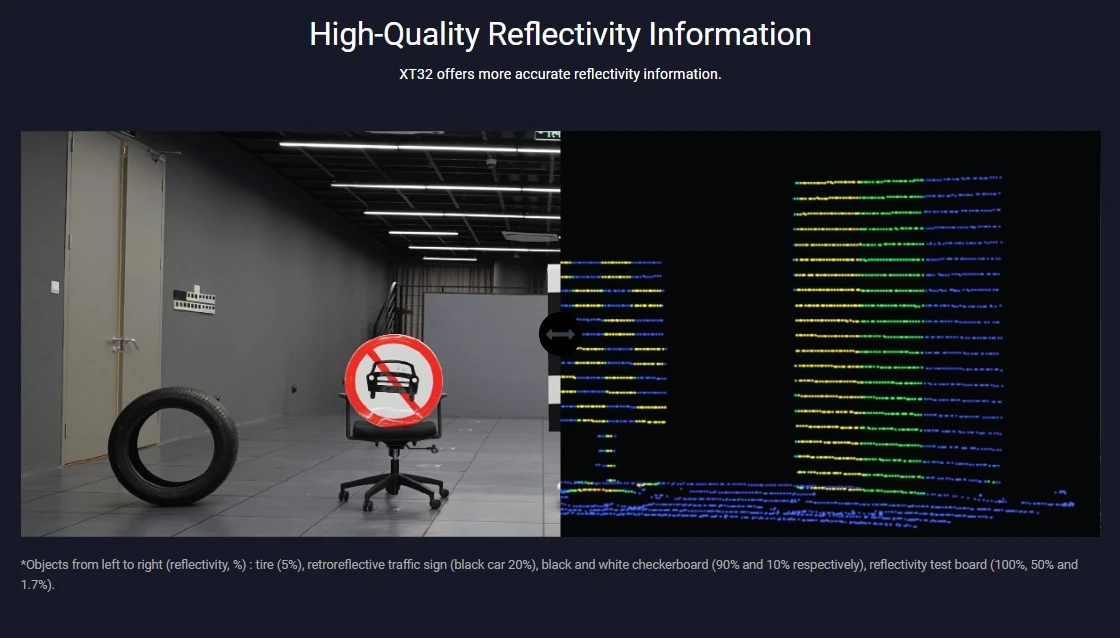

Its wide dynamic range enables accurate reflectance and distance measurement data. In addition to GPS PPS, it supports synchronization with other sensors via PTP (PTPv2, gPTP). The compact head measures 103mm in diameter x 76mm in height and weighs approximately 0.8kg, while the long-range model is even smaller and lighter.

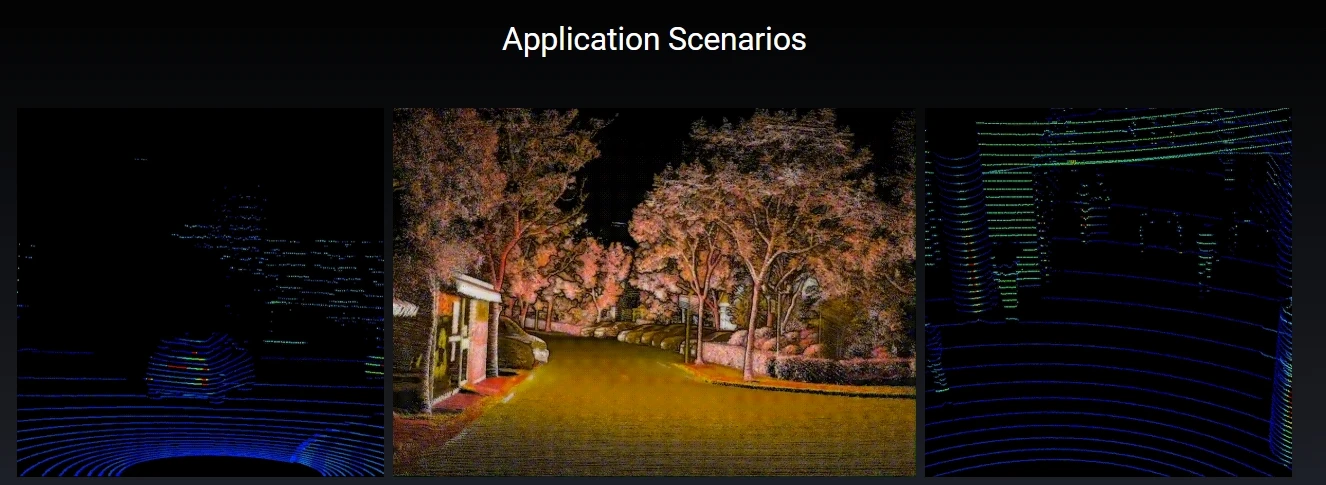

To accommodate a variety of operating environments, it has passed rigorous reliability tests, including temperature and humidity, vibration and shock resistance, frost resistance, water resistance, and dust resistance. It is installed in a wide range of platforms, including automobiles, special vehicles, trucks, buses, robotaxis, agricultural machinery, construction machinery, AGVs (automated guided vehicles), AMRs (autonomous mobile robots), delivery robots, security robots, drones, and UAVs, and is used in a wide range of applications, including autonomous driving, ADAS, autonomous navigation, obstacle detection, environment recognition, 3D mapping, SLAM, navigation, smart cities, people flow measurement, and traffic measurement.
Cooperation projects with well-known enterprises using XT32:

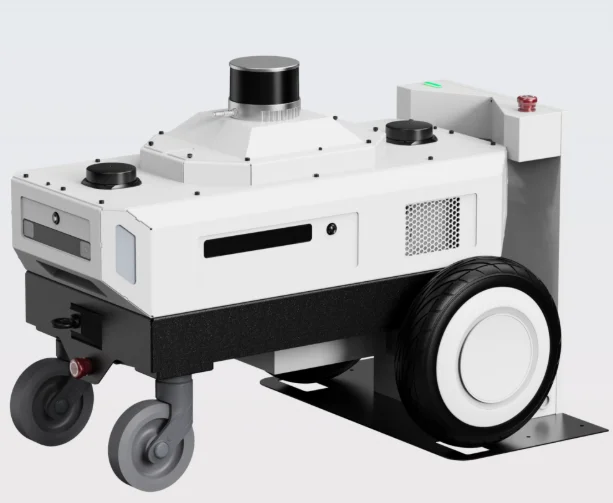

*Segway Robotics Project :Segway+ Nvidia+ Heisai

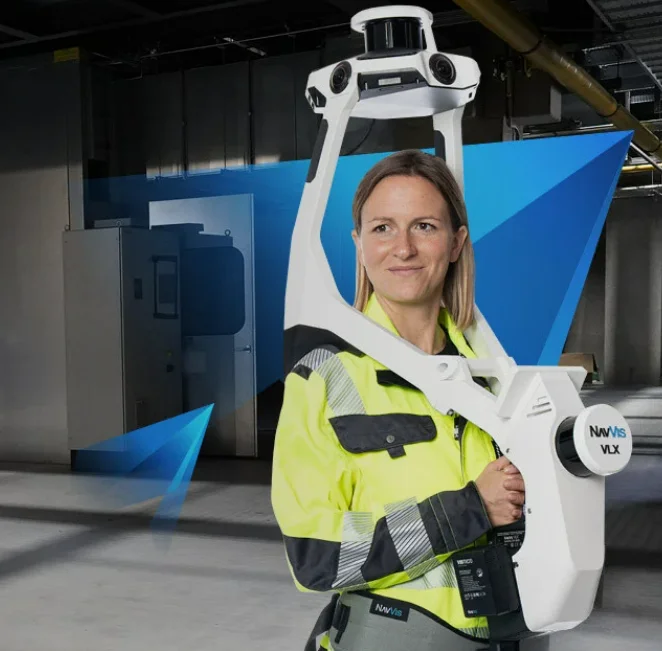

* NavVi VLX3 solution Mobile Mapping : NavVis+ Heisai

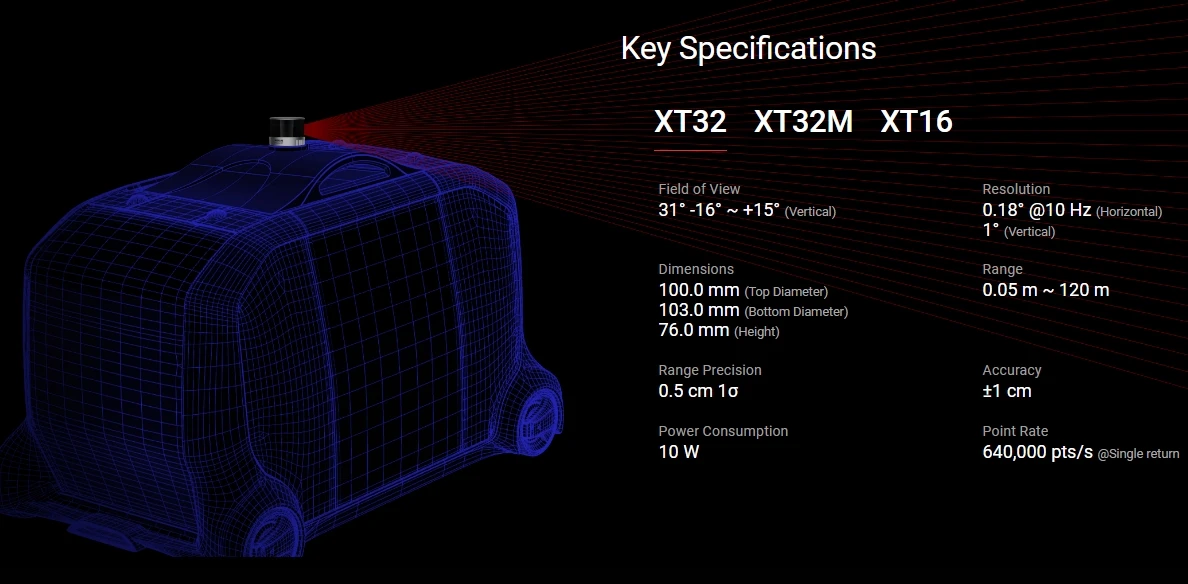

SPECIFICATION DETAILS

XT16

XT32
Specifications
Type
XT16/XT32
Country of Origin
Original
Product name
Lidar sensor
Recommend Products
Company Profile

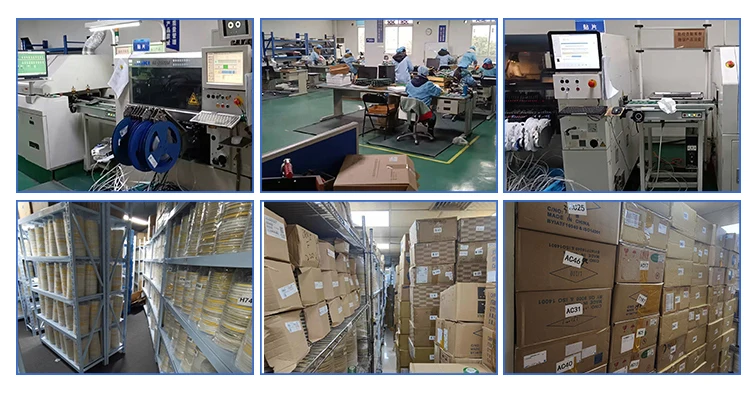

About Maojiexin, we specialize in providing high-precision GNSS/GPS modules, development boards, and electronic components to a global clientele. With a focus on innovation and quality, our solutions power industries ranging from automotive to IoT, supporting applications in agriculture, smart cities, and more. Our dedicated team is committed to delivering reliable products and exceptional service, ensuring that your projects succeed with precision and efficiency. Trust us to be your partner in navigating the future of technology.
