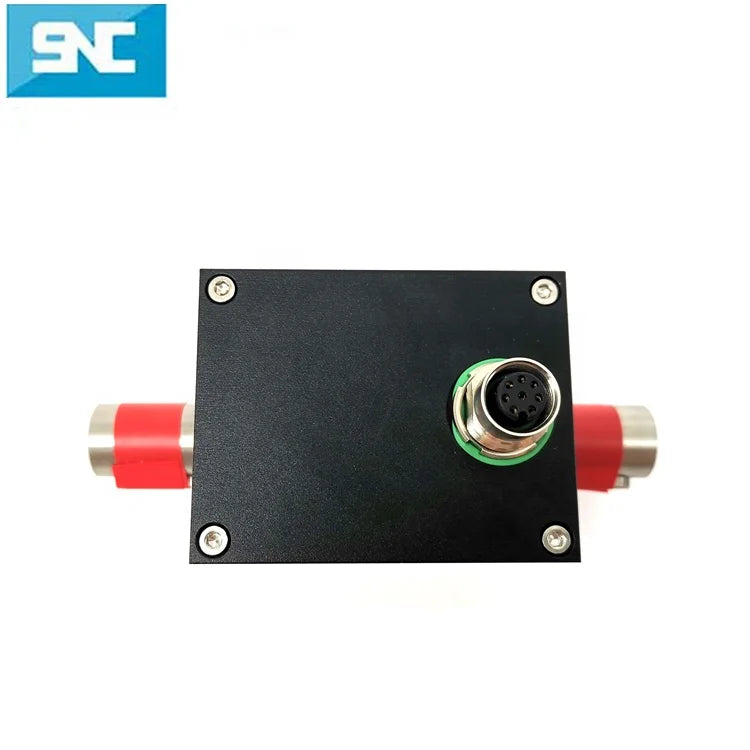

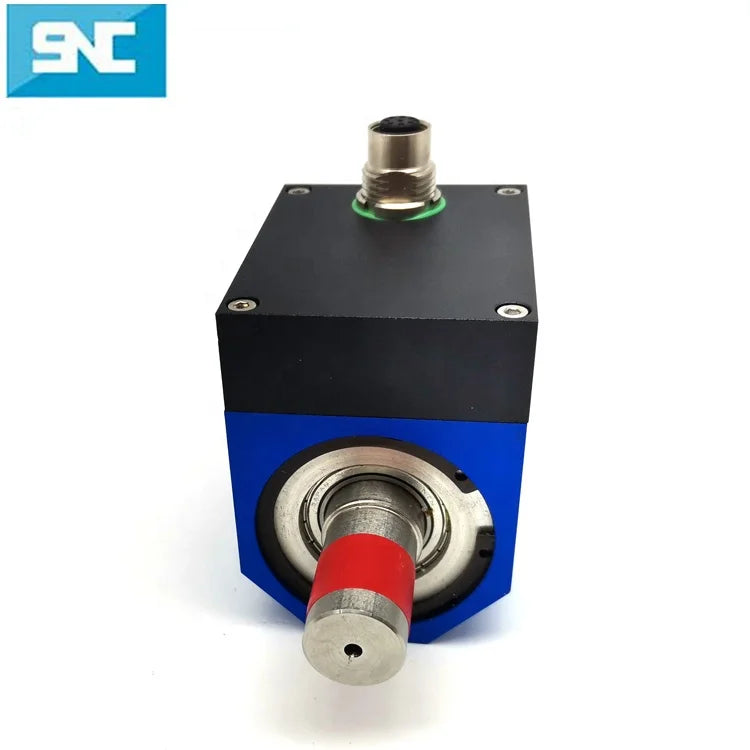

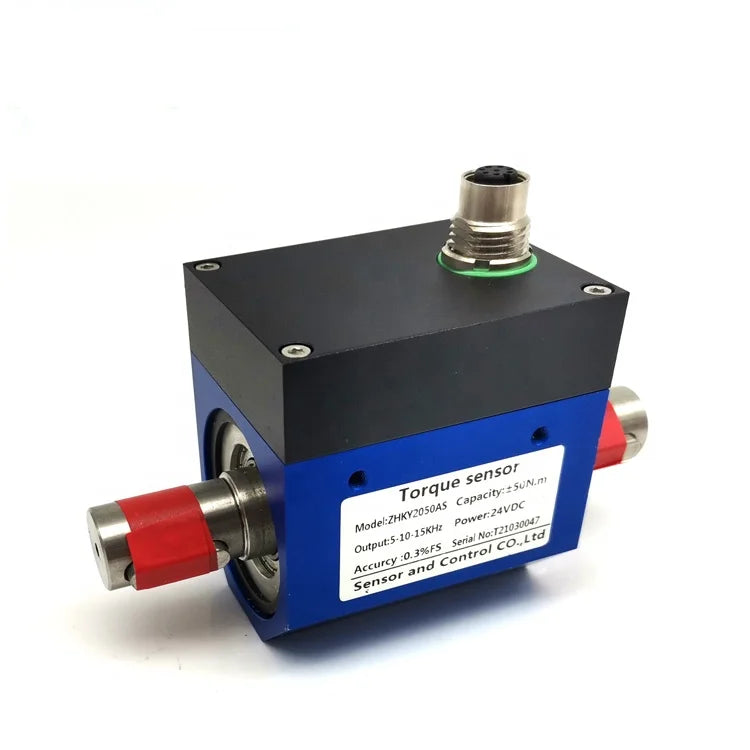

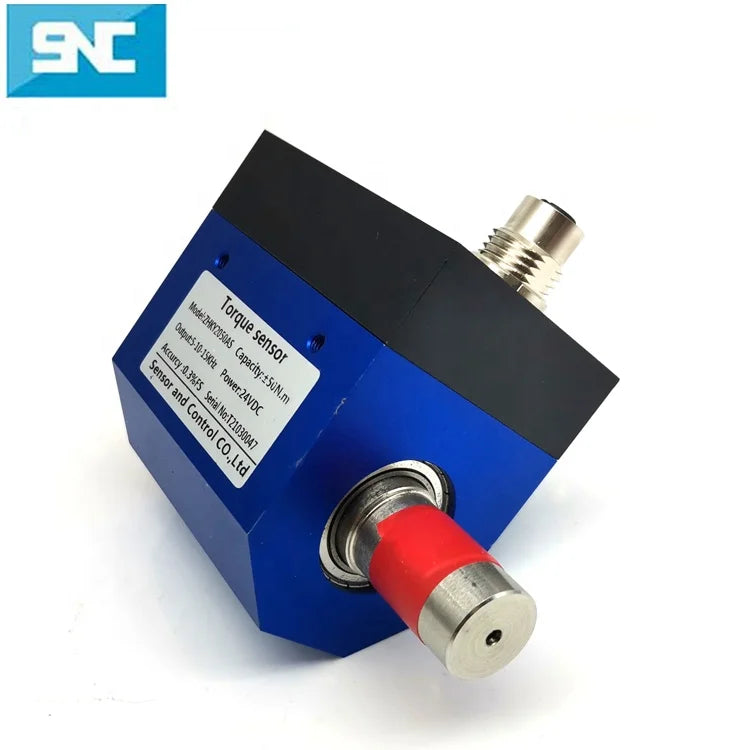

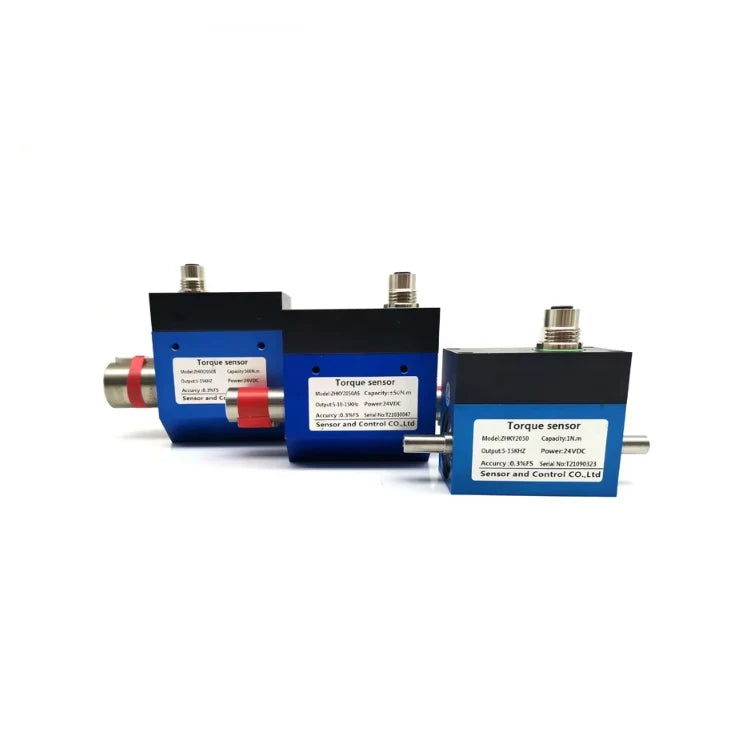

ZHKY2050A 5Nm 100N.m 200Nm 500Nm dynamic torque sensor shaft rotation sensor torque transducer Dynamic rotary torque sensor
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
ZHKY2050A 5Nm 100N.m 200Nm 500Nm dynamic torque sensor shaft rotation sensor torque transducer Dynamic rotary torque sensor
SPECIFICATIONS
Brand Name: Sensorcon
Capacity: 0.1N.m - 2000N.m
Description: Dynamic rotary torque sensor,Dynamic rotary torque sensor
Features: dynamic Torsion Transducer
Material: Aluminum housing, stainless steel shaft
Max rotation speed: 8000 rpm
Model: ZHKY2050 series
Model Number: ZHKY2050 series
Mounting Type: Screw installation
Output: Frequency,5-15KHZ/ 4-20 mA/ 0-20mA/ 0-10v/ 0-5v
Output type: Torque and speed
Place of Origin: Guangdong, China
Power supply: ±15 VDC or 24 VDC
Series: dynamic rotary torque transducer
Speed measurement: 60 or 120 pulses
Theory: strain gauge torque sensor
Torque accuracy: 0.3%/ 0.1%
Type: Torque Sensor,Dynamic rotary torque sensor
Usage: Torque speed power measure
ZHKY2050A 5Nm 100N.m 200Nm 500Nm dynamic torque sensor shaft rotation sensor torque transducer Dynamic rotary torque sensor
Model: ZHKY2050A
Item: Noncontact rotary torque sensor
Capacity: 5, 10, 20, 30, 50, 100, 200, 300, 500N.m
Material: Aluminum body, stainless steel shaft
Precision: ±0.3 %F.S, ±0.2 %F.S, ±0.1%
Application: Motor, etc.
Speed measure: YES, max. 8000RPM
If you need higher speed measure MAX.15,000, please refer to ZHKY2051
(Optional accessories available)
Build-in display: Torque speed power display

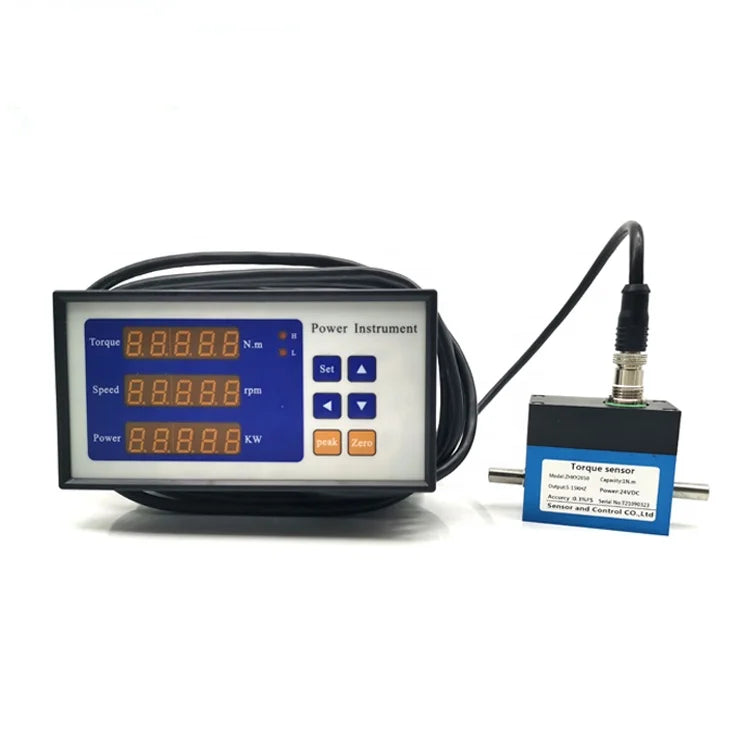

External Torque speed power display- PY802
English Software
Features:
1, Small size, non-contact rotary torque sensor on the basis of the special technology of strain bridge.
2, Suitable for all kinds of torque measurement occasions requiring small size high speed.
3, Outputs 5~15kHz frequency, or 0-5V, 0-10V, 4~20mA signal, suitable for long distance transmission.
4, Small in size, easy to use and install and strong signal anti-interference ability.
5, It is non-contact, wear-free, suitable for long-term high-speed rotation.
Parameter:
|
Torque capacity |
5, 10, 20, 30, 50, 100, 200, 300, 500N.m 1000N.m, 2000N.m or higher, please refer to ZHKY2051 |
|
Speed range |
0,100,200-1000,4000,6000,7000, 8000 Varies with Capacity |
|
Excitation voltage: |
12-30VDC 15V DC (for frequency signal output), |
|
Torque signal output |
10±5 KHZ (Zero 10kHz) default |
|
Speed signal output |
60 pulse TTL, on-off output 0-5/10VDC, 4-20mA, RS485/ RS232 |
|
Accuracy |
±0.3% F.S / ±0.2% F.S/±0.1% F.S |
|
Temp Effect on Zero-%RO/ |
±0.02 |
|
Temp Effect on Range-%RO/ |
±0.02 |
|
Working Temperature range: |
0 ~ +50℃ |
|
Compensated temperature range |
0~+60℃ |
|
Electrical connection |
6-pins, 8 pins |
|
Safety overload: |
200 %F.S |
|
Material |
Aluminum body, stainless steel shaft |
|
Cable length: |
5 m |
|
Cable connection: |
Red: Exc+ Black: Exc - Green: Signal + White: Signal- |
|
|
 |
 |
 |
 |
 |
 |
 |
 |
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
