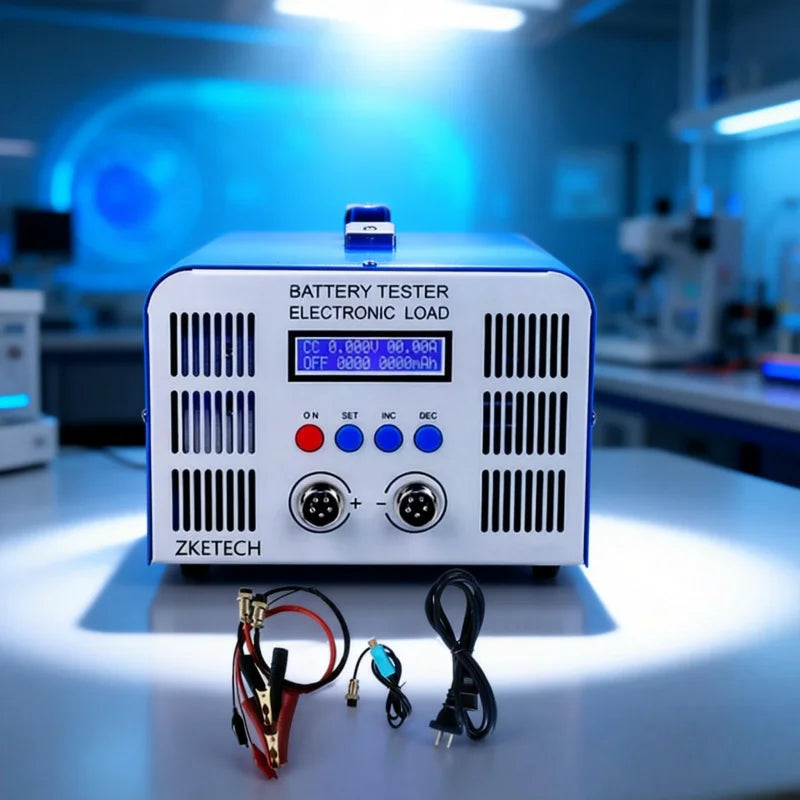

ZKE Tech EBC-A40L 5V 40A Lithium Ion Battery Capacity Tester Lifepo4 Cell Discharge Analyzer Diagnostic Tools
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75
ZKE Tech EBC-A40L 5V 40A Lithium Ion Battery Capacity Tester Lifepo4 Cell Discharge Analyzer Diagnostic Tools
SPECIFICATIONS
Accuracy: 0.2%
Applicable Models: Universal
Application: Lead acid / iron lithium / ternary battery
Brand Name: Zketech
Car Fitment: Universal
Charge mode: CV constant current and voltage charging
Color: /
Communication Interface: USB
Connectivity: USB
Discharge Current: 40A
Display Type: Lcd
For Vehicle Brand: /
Function: Test Capacity Voltage Current
Make: Zketech
Model Number: EBC-A40L
Operating System: Not Applicable
Place of Origin: Guangdong, China
Power: 180W
Power rate: 200W
Product name: Battery Capacity Tester

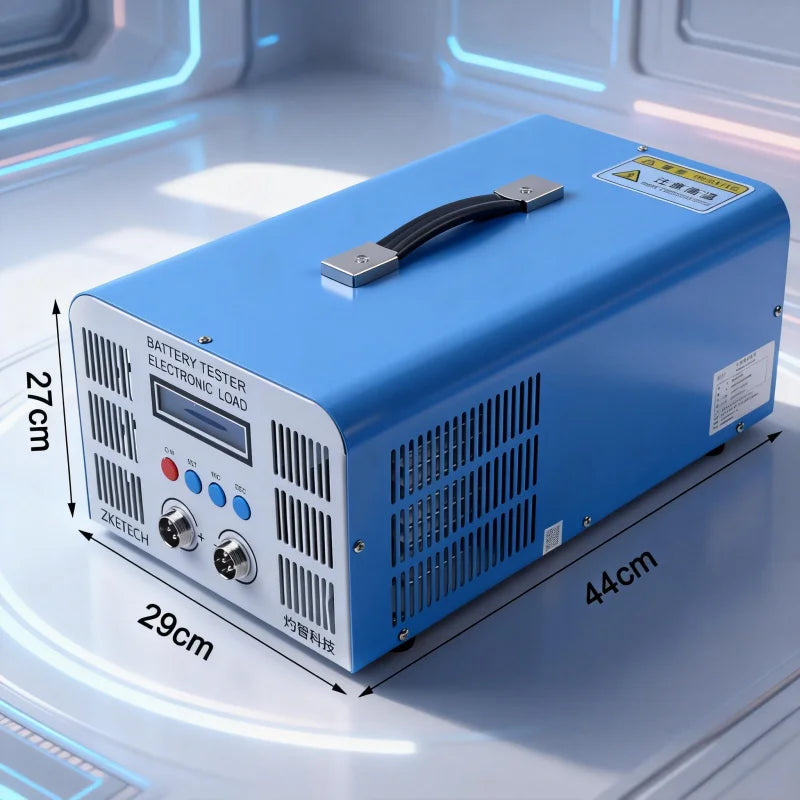

Size: 350*203*140mm
Specification: /
Support Language: English
Type: Battery Tester
Voltage: 110V-220V,220VAC
Warranty: 12 Months
Weight: 5.4kg
Voltage: 110V / 220V
Maximum discharge power: 200W
Voltage range: 0-5V
Current range: 0.1-40A
Current accuracy: 0.2% +-0.01A
Discharge mode: CC constant current discharge / CP constant power
Discharge termination: time / voltage is below the set lower limit / manual
Charging mode: CV constant current and constant voltage charging
Charging termination: constant voltage current is lower than the set lower limit / manual

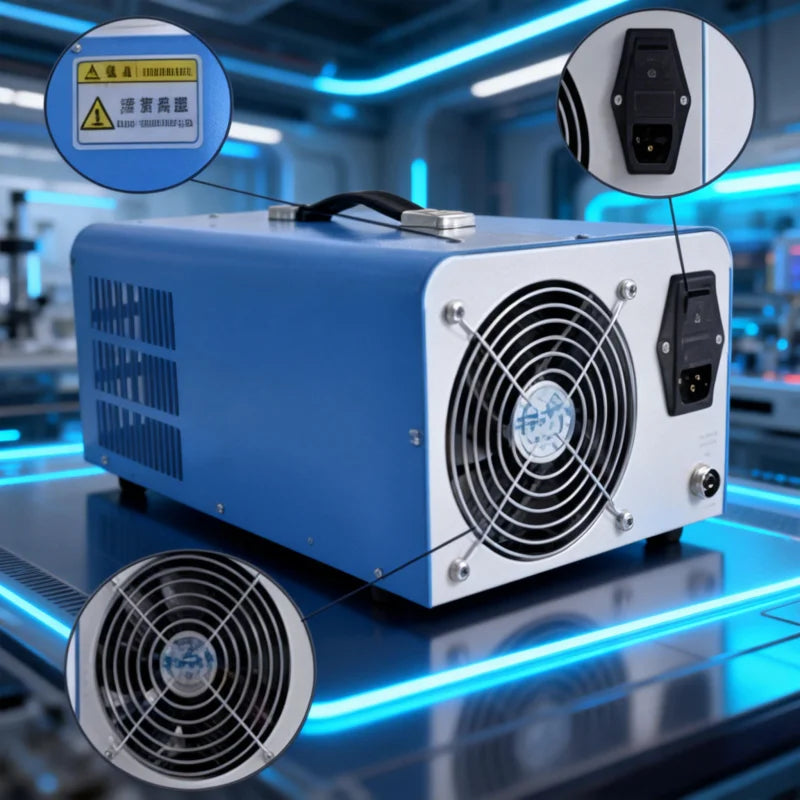

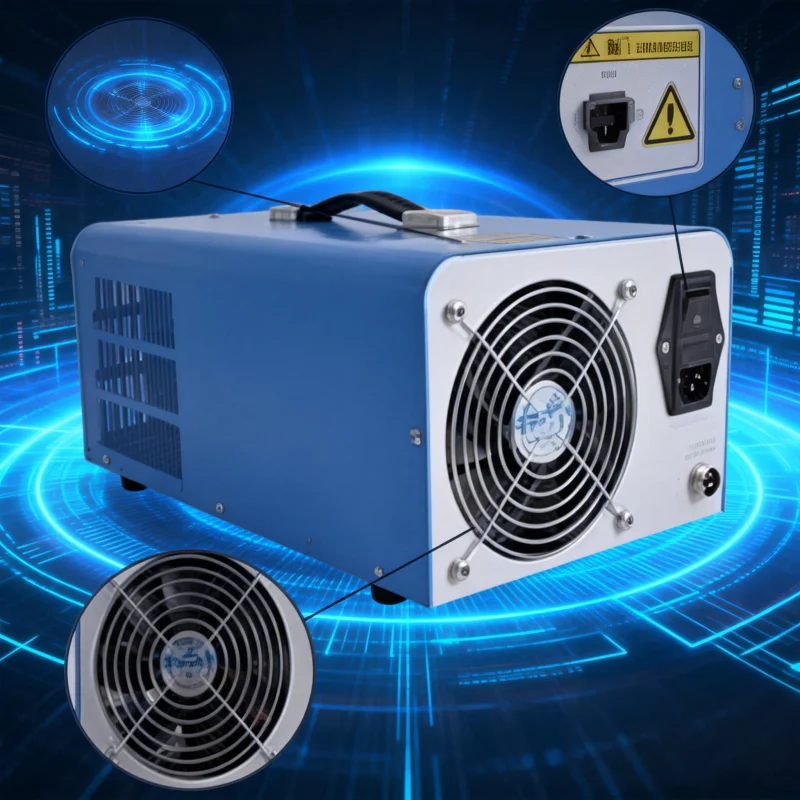

Cooling method: active cooling by fan
Accessories: one online cable, one pair of test cables, one power cable
Packing size: 44 * 29 * 27cm
sizeVoltageMaximum discharge power44 * 29 * 27cm110V / 220V200W
Capacity measurement:
Within 10Ah, resolution 0.001Ah
10Ah-100Ah, resolution 0.01Ah
Above 100Ah, resolution 0.1Ah
Model |
ebc a40L Battery Pack Tester |
||||||
Discharge current |
40A |
||||||
Equipment Supply |
220VAC |
||||||
Discharge mod |
CC constant current discharge / CP Constant power |
||||||
Weight |
5.4kg |
||||||
Size |
350*203*140mm |
||||||
Applications |
Home solar system energy storage |
||||||
Package Include |
1x tester 1xOnline line 1x test lines 1xpower cord |
||||||
All of our products have passed CE, PSE, FCC, RoHs, MSDS, ETL certificates.
More than 200 skilled employees, our products are exported to more than 50 countries and regions, including North America, Japan,Germany, UK.
Our company OYF have become increasingly popular due to the reliable battery lifetime and improved recharge ability and stability.

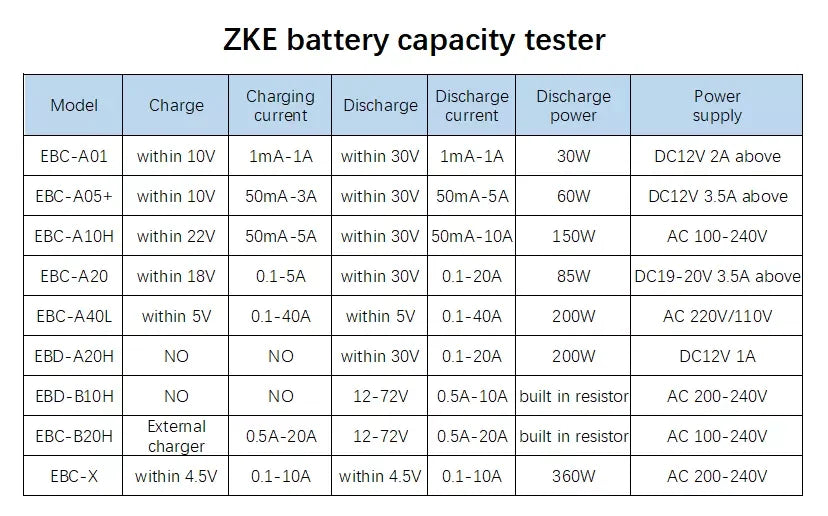

A:We have 9 type of Zketech battery tester model.
1. EBC-A01
2. EBC-A05+
3. EBC-A10H
4. EBC-A20
5. EBC -A40L
6. EBD-A20H
7. EBD-B10H
8. EBC-B20H
9. EBC-X
A: Yes, we welcome sample order to test and check quality.
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
