ZL-7850A, Incubator Cheese Sausage Deposit Control, Humidity Temperature Controller, Hygrostat Thermostat, Lilytech Humidistat
Product reviews
Product description
Shipping & Return
SPECIFICATIONS
After Warranty Service: Online support
After-sales Service Provided: No overseas service provided
Communication Interface: Serial Port
Display Type: LCD Display
IP Rating: IP65
Keyword: 7850
Temperature Resolution: 0.1°C
Weight: 0.24
brand name: LILYTECH
keyword2: incubator controller xm-18
model number: ZL-7850A
place of origin: China
type: Digital Thermometer
Product Description

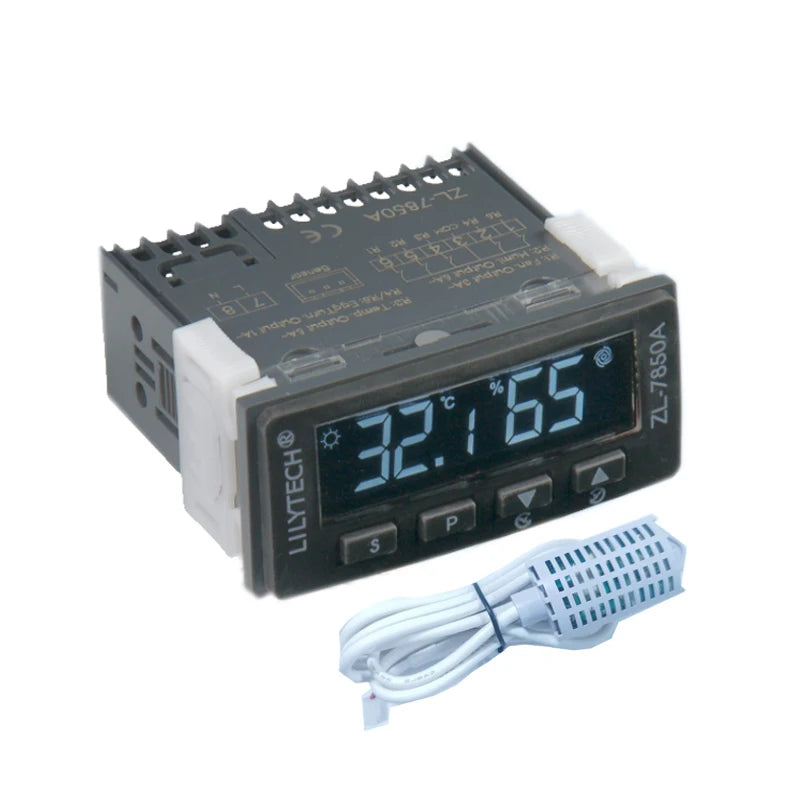

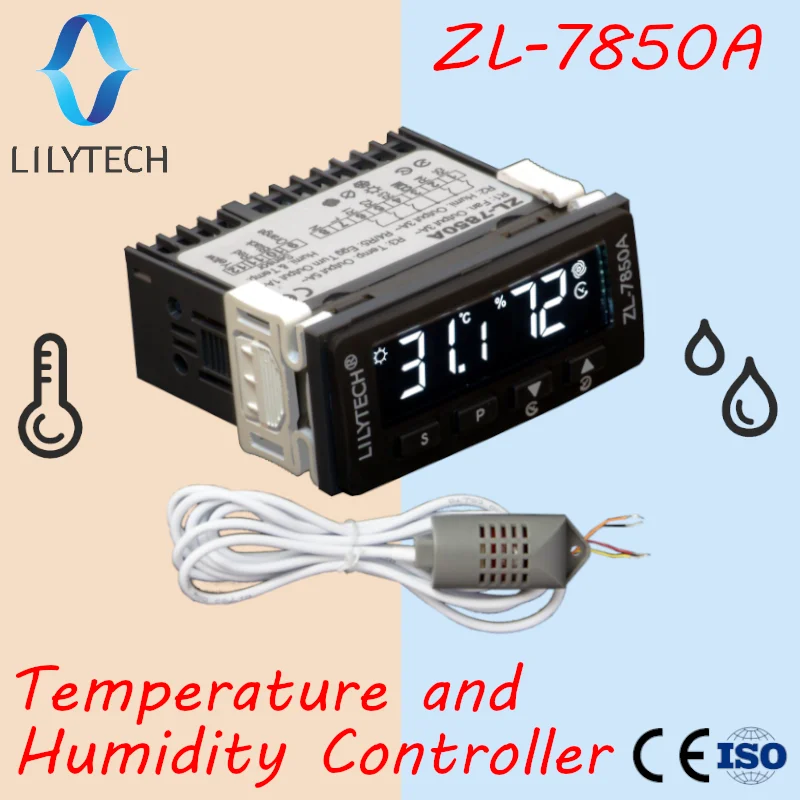

ZL-7850A
TEMPERATURE AND HUMIDITY CONTROLLER
TEMPERATURE AND HUMIDITY CONTROLLER

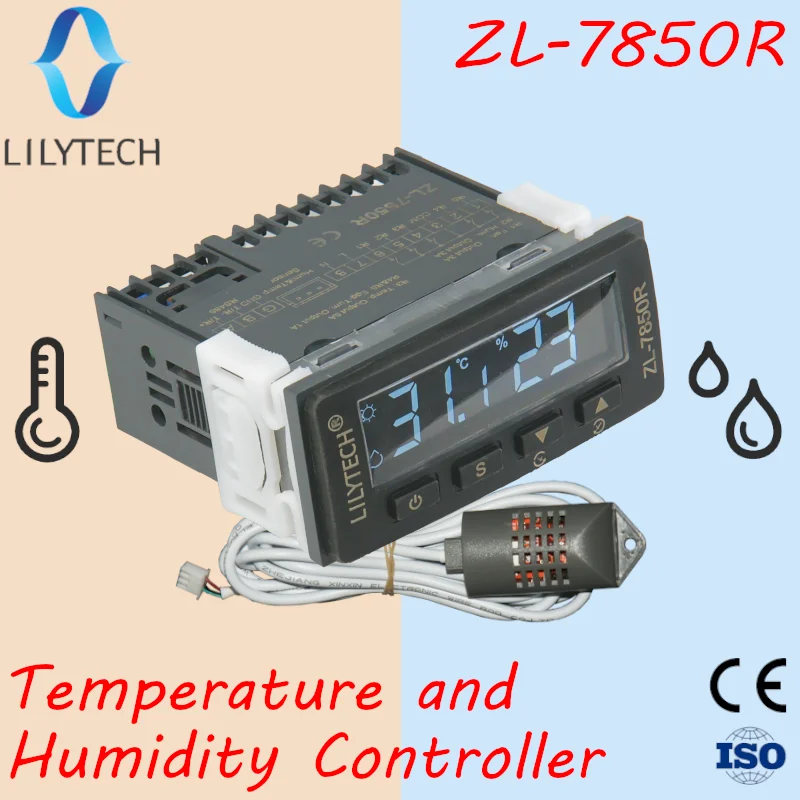

Same as ZL-7850R, without RS485 modbus function
With feature:
*. Sensor cable could be extended to 50 meters.
*. 0-99%RH control.
*. Super high accuracy.
*. Additional outputs: two timers for outputs.
With function:
*. Heating / Cooling mode option.
*. Humidifying / de-humidifying mode option.
*. Temperature and humidity output delay protection.
*. Hight / low temperature / humidity alarm.
*. Sensor failure alarm and outputs protection.
*. Calibration for temperature and humidity.
*. Output R1: Could be energized when over hot and/or over wet. Could drive an air exhausting fan, or an alarming indicator.
*. Two timers:
One timer output is R1, could drive an air exhausting fan periodically.
Another timer outputs R4 and R5 could drive such as incubator egg tray.
*. R4 and R5 could be energized by keys, suitable for control the egg tray to any angle.
It is suitable for:
Incubator control
Swallow, swiftlet humidity control
Mushroom house control
and so on.
*. Sensor cable could be extended to 50 meters.
*. 0-99%RH control.
*. Super high accuracy.
*. Additional outputs: two timers for outputs.
With function:
*. Heating / Cooling mode option.
*. Humidifying / de-humidifying mode option.
*. Temperature and humidity output delay protection.
*. Hight / low temperature / humidity alarm.
*. Sensor failure alarm and outputs protection.
*. Calibration for temperature and humidity.
*. Output R1: Could be energized when over hot and/or over wet. Could drive an air exhausting fan, or an alarming indicator.
*. Two timers:
One timer output is R1, could drive an air exhausting fan periodically.
Another timer outputs R4 and R5 could drive such as incubator egg tray.
*. R4 and R5 could be energized by keys, suitable for control the egg tray to any angle.
It is suitable for:
Incubator control
Swallow, swiftlet humidity control
Mushroom house control
and so on.
*. Power supply: 100 ~ 240Vac, 50/60Hz
*. Sensor: Factory provided cable length is 2 meters
*. Accuracy: Temperature: 1% / 25℃

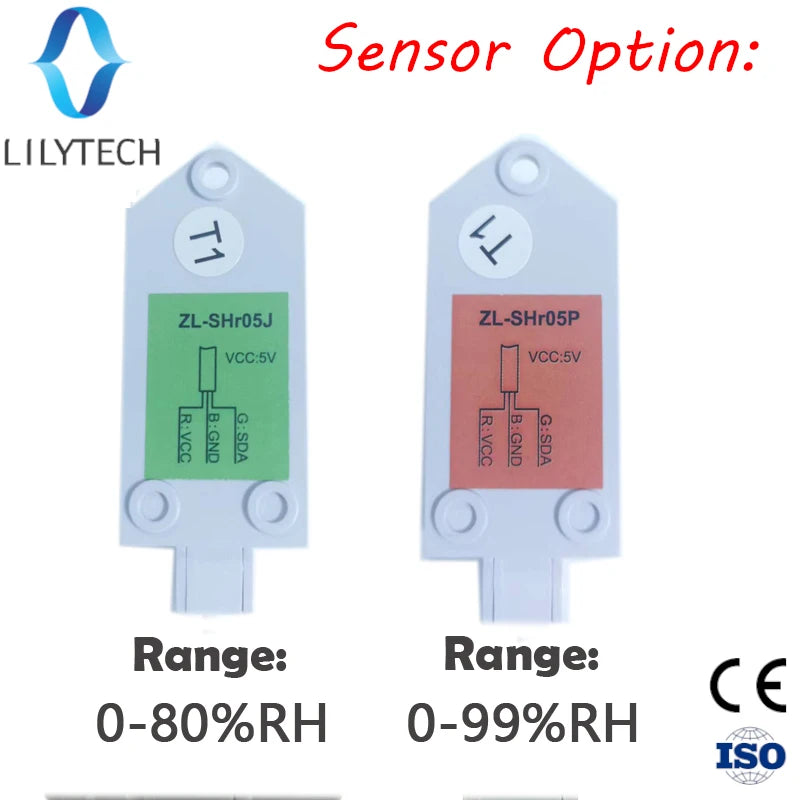

*. Humidity: ±3% (with the sensor ZL-SHr05J), ±2% (with the sensor ZL-SHr05P)
*. Setting range: Temperature: 0.0 ~ 65.0℃
*. Humidity: 0 ~ 80%RH (when U9 = 0 for ZL-SHr05J), 0 ~ 99%RH (when U9 = 1 for ZL-SHr05P)
*. Display range: Temperature: -20. ~ 80.0℃, Humidity: 0 ~ 99%RH

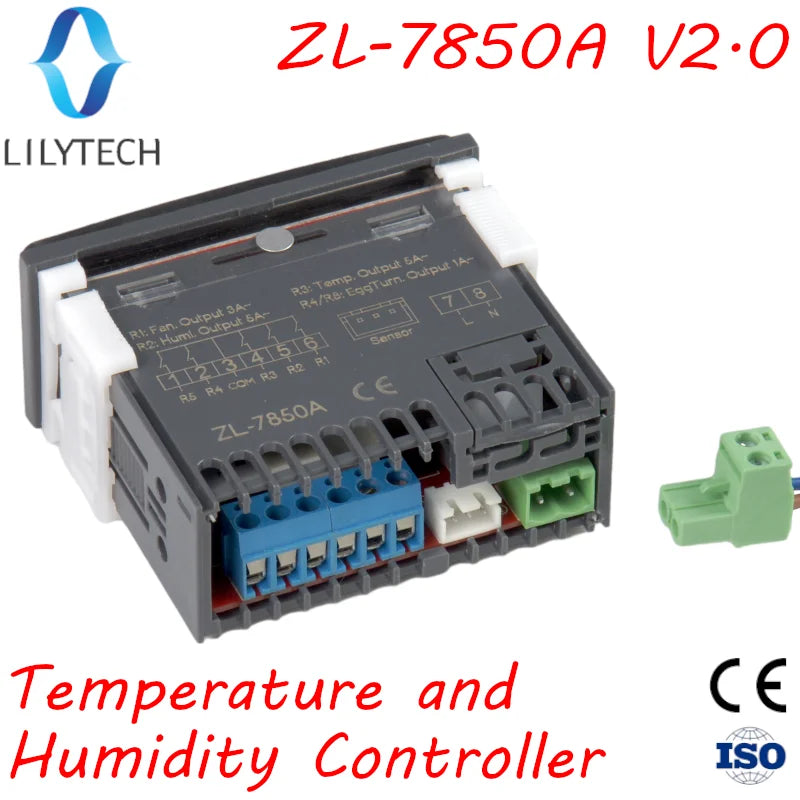

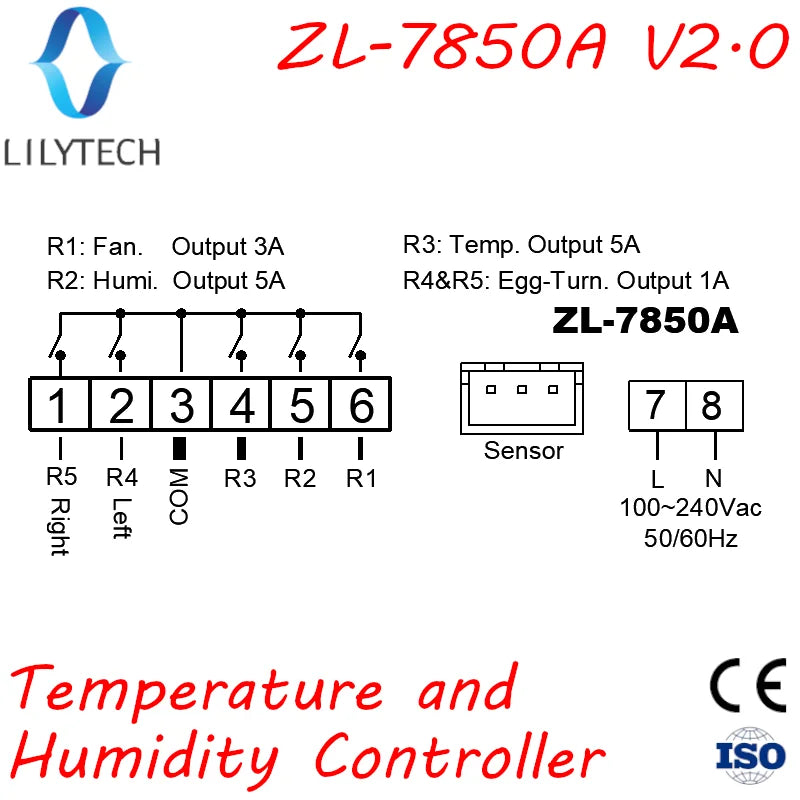

*. Outputs:
Temperature control: R3 ≤ 5A
Humidity control: R2 ≤ 5A
Multi-function: R1 ≤ 3A
Timer outputs: R4 and R5 ≤ 1A
*. Working environment: -10 ~ 45℃, no more than 85%RH, without dew
*. Case dimension: W78 x H34.5 x D71 (mm)
*. Installation drilling: W71 x H29 (mm)
*. Case materials: PC + ABS, fireproof
*. Protection level: IP65 (Front side only)
*. Sensor: Factory provided cable length is 2 meters
*. Accuracy: Temperature: 1% / 25℃
*. Humidity: ±3% (with the sensor ZL-SHr05J), ±2% (with the sensor ZL-SHr05P)
*. Setting range: Temperature: 0.0 ~ 65.0℃
*. Humidity: 0 ~ 80%RH (when U9 = 0 for ZL-SHr05J), 0 ~ 99%RH (when U9 = 1 for ZL-SHr05P)
*. Display range: Temperature: -20. ~ 80.0℃, Humidity: 0 ~ 99%RH
*. Outputs:
Temperature control: R3 ≤ 5A
Humidity control: R2 ≤ 5A
Multi-function: R1 ≤ 3A
Timer outputs: R4 and R5 ≤ 1A
*. Working environment: -10 ~ 45℃, no more than 85%RH, without dew
*. Case dimension: W78 x H34.5 x D71 (mm)
*. Installation drilling: W71 x H29 (mm)
*. Case materials: PC + ABS, fireproof
*. Protection level: IP65 (Front side only)

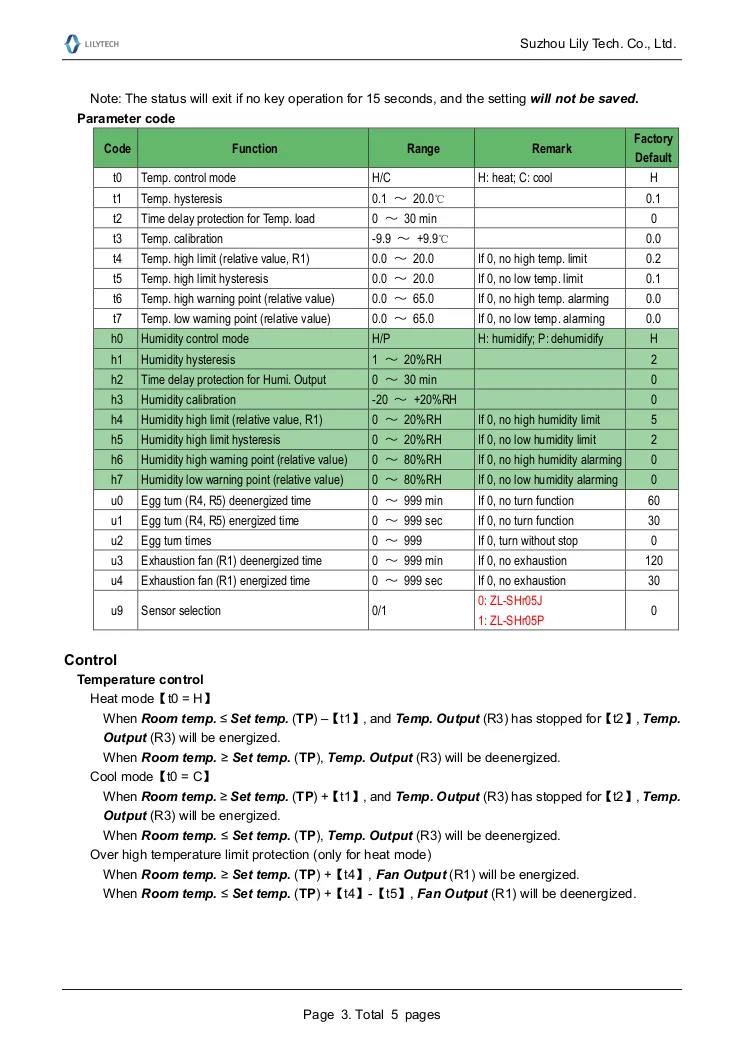

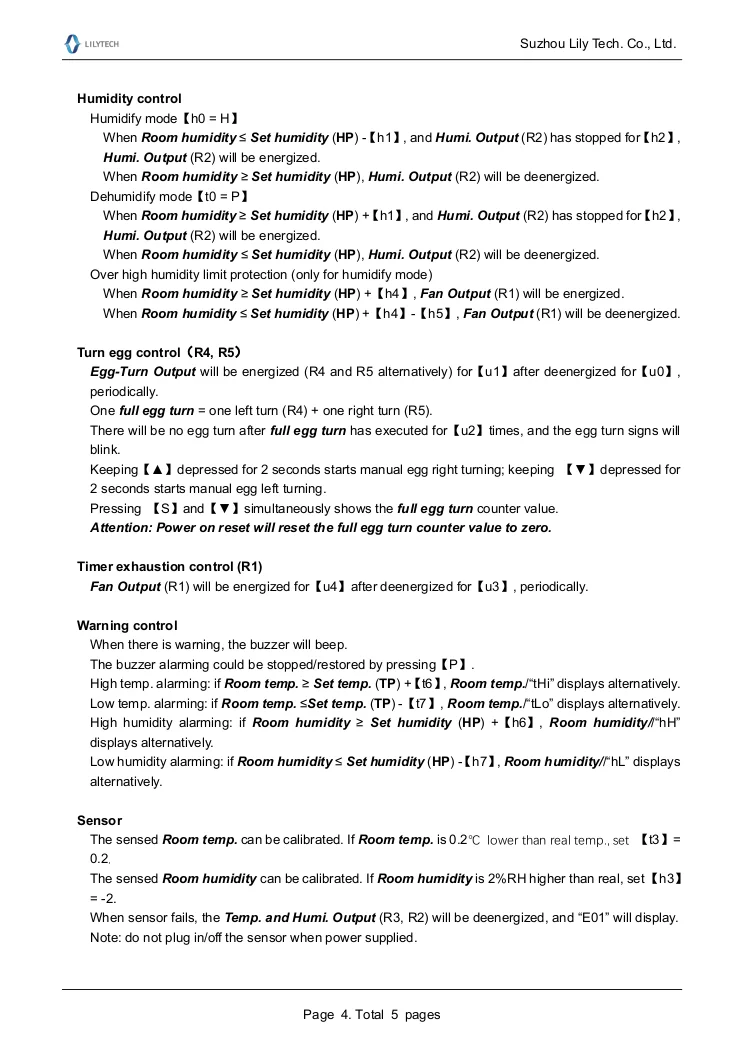

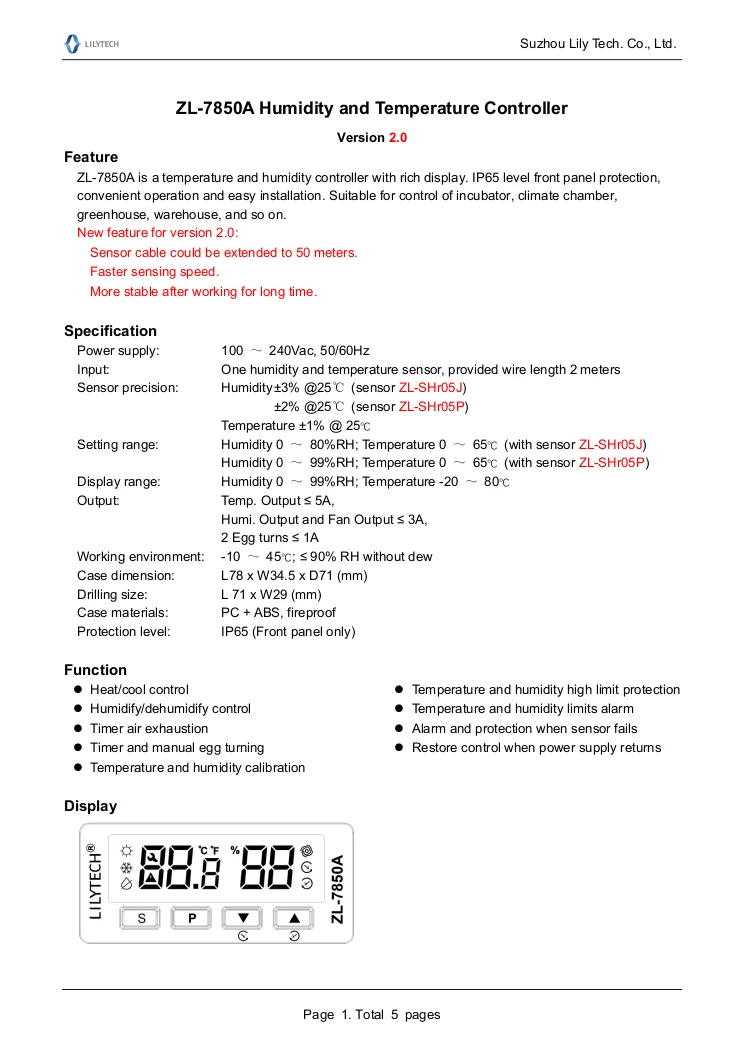

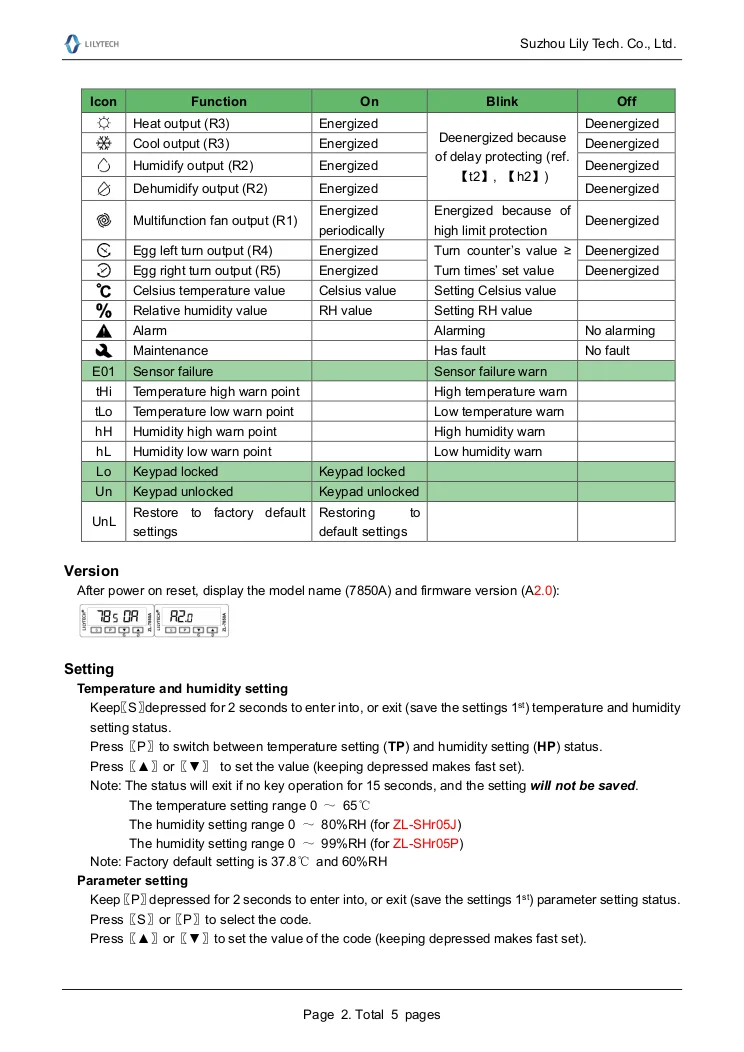

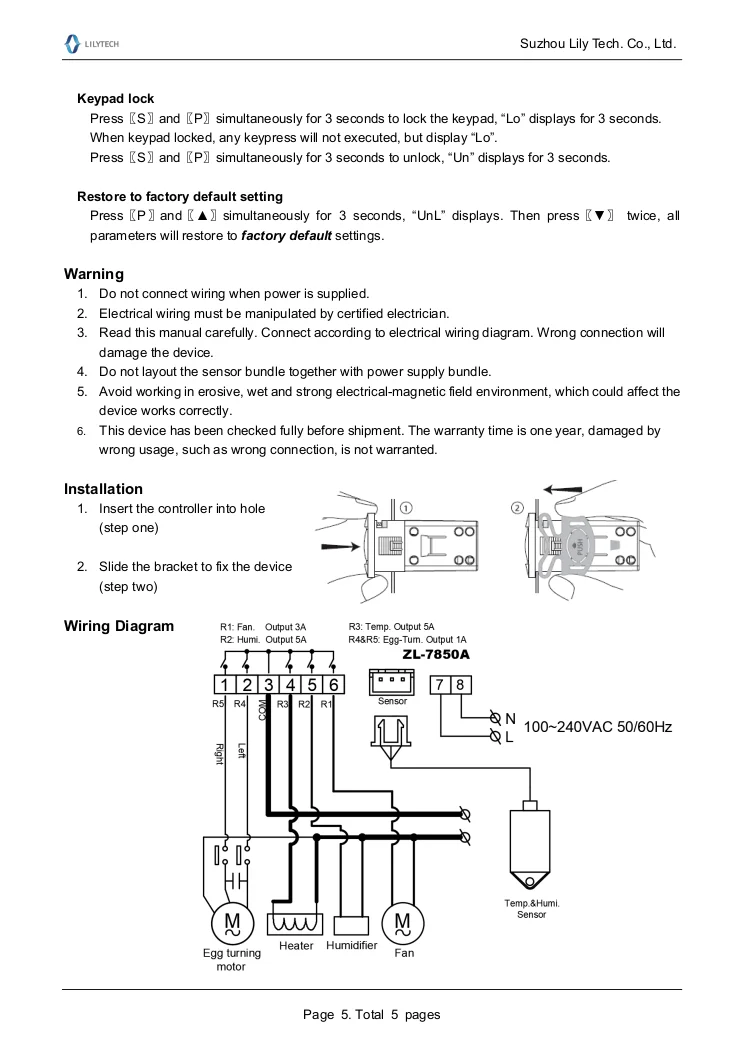

Manual
Manual (copy and paste to browser address to view and downlaod):
www.suzhoulily.com/pdf/ZL-7850A_en_A2.0.pdf
The content of pdf file could be translated by web translation.
www.suzhoulily.com/pdf/ZL-7850A_en_A2.0.pdf
The content of pdf file could be translated by web translation.
Certifications
Recommend Products

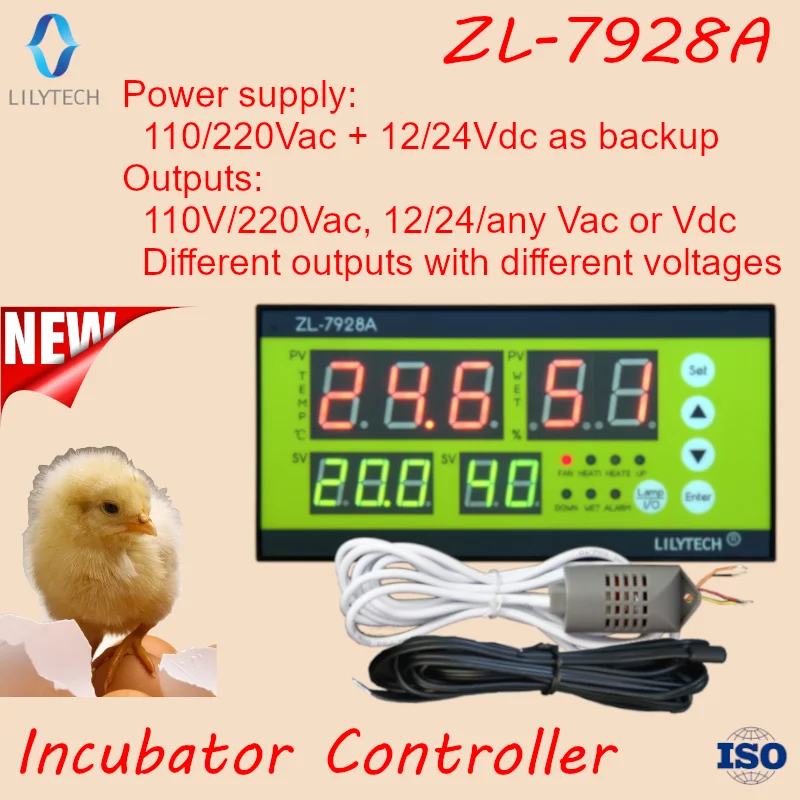

Traditional "XM-18"
All outputs are wet outputs. They are internally connected to power supply. And the voltage of outputs are same as power supply.
Dry outputs + Backup power supply
All outputs are dry contactors. They do not have power. Every output could have its own different voltages. If all are supplied with 12 or 24Vdc, it could be a solar system.
Smaller Case Series
Dual display
Manual turn
Dual display. Modbus.
Manual turn
SSR integrated

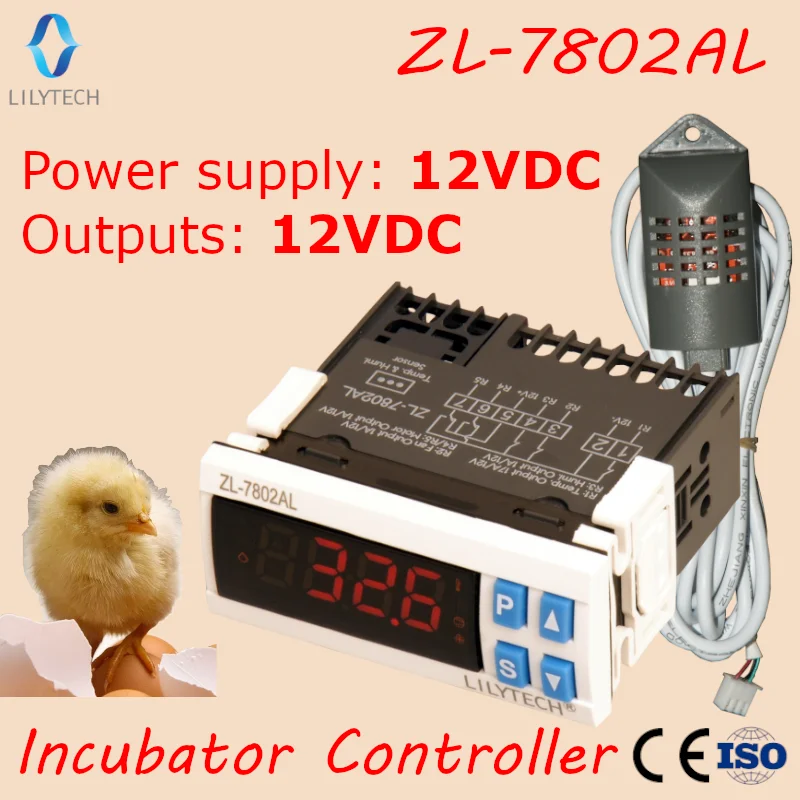

Pure 12Vdc
12Vdc turning motor polarity control
Without Humidity Control Series
Thermostat
Thermostat with one timer

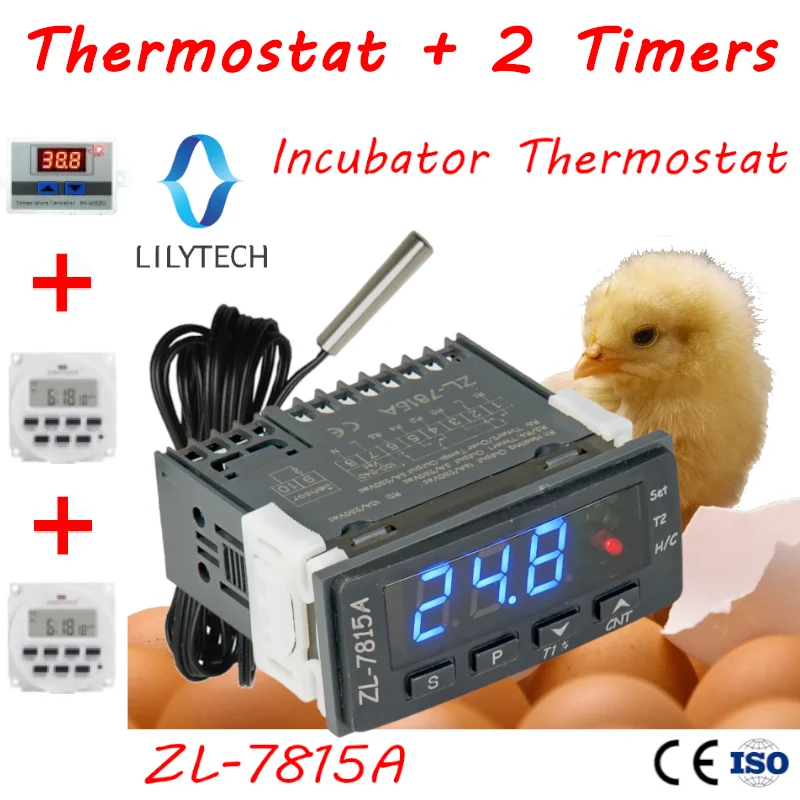

Thermostat with two timers
